Acrylic foam tape is a very strong tape that can replace screws and nails for fixing. PAC KING’s acrylic foam tape is designed to provide high performance for bonding, fixing and mounting assembly parts, with excellent viscoelasticity and adhesive properties. It is widely used in the automotive, electronics and construction industries.
We have a wide range of customed thickness among 0.4mm and 3mm.
The common thickness is 0.4mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm.
Any color and thickness for any type of the acrylic foam tapes would be available if you need it.
Share
Details of Acrylic Foam Tape
Material: Acrylic foam
Adhesive: Acrylic
Foam thickness: 0.25mm~3mm

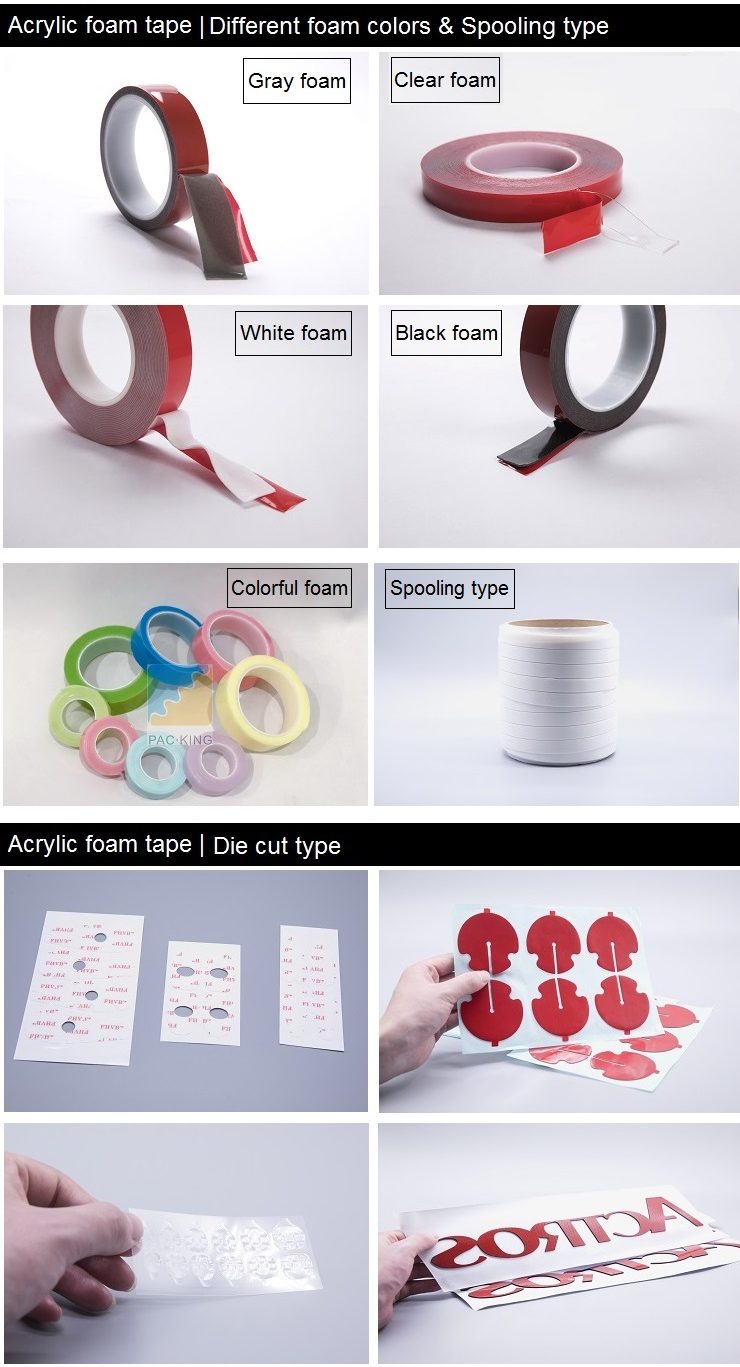

Foam colors (standard): Clear, gray, white, black
Foam colors (others): Red, green, blue, yellow, etc
Release liner: Red/green PE film, clear PET film, white paper, etc
Jumbo roll size: 820mm/800mm x 330m
Log roll size: 820mm/800mm x 10m/16.5m/20m/33m
Die cut type: Supply
Customized service: Package, size, release liner/paper core printing
Features:
1. Fast and easy assemblage
2. High adhesion and shear properties
3. Great conformability and stretching
4. Good performance in dynamic shear
5. Good moisture and chemical resistance, ideal for exterior use
6. Creates an environment-friendly seal when bonding
7. Resists UV light for long term outdoor durability
Models of Acrylic Foam Tape
| Part No. | Backing | Foam color | Thickness |
| AF6025C/G/W | Acrylic foam | Clear/Grey/White | 0.25mm |
| AF604B/C/G/W | Acrylic foam | Black/Clear/Grey/White | 0.4mm |
| AF6064B/G/W | Acrylic foam | Black/Grey/White | 0.64mm |
| AF605C | Acrylic foam | Clear | 0.5mm |
| AF605CPET | Acrylic foam | Clear | 0.5mm |
| AF606C | Acrylic foam | Clear | 0.6mm |
| AF607W | Acrylic foam | White | 0.7mm |
| AF608B/C/G/W | Acrylic foam | Black/Clear/Grey/White | 0.8mm |
| AF610C/G/W | Acrylic foam | Clear/Grey/White | 1mm |
| AF611B/G | Acrylic foam | Black/Grey | 1.1mm |
| AF612B/G/W | Acrylic foam | Black/Grey/White | 1.2mm |
| AF615B/C/G/W | Acrylic foam | Black/Clear/Grey/White | 1.5mm |
| AF620B/C/G/W | Acrylic foam | Black/Clear/Grey/White | 2mm |
| AF6220G | Acrylic foam | Grey | 2.2mm |
| AF623B | Acrylic foam | Black | 2.3mm |
| AF6230G | Acrylic foam | Grey | 2.3mm |
| AF6240G | Acrylic foam | Grey | 2.4mm |
| AF624W | Acrylic foam | White | 2.4mm |
| AF625C/W | Acrylic foam | Clear/White | 2.5mm |
| AF6250G | Acrylic foam | Grey | 2.5mm |
| AF630B/C/G/W | Acrylic foam | Black/Clear/Grey/White | 3mm |
Types of Acrylic Foam Tape
Technical Data of Acrylic Foam Tape
|
The following parameters are for reference only |
||
|
Model |
AF610C |
|
|
Carrier |
Self adhesive acrylic foam |
|
|
Liner |
Red/ Green release PE liner |
|
|
Foam color |
Transparent color |
|
|
Total thickness |
1000±50 mic |
|
|
Peel adhesion at 180° |
Standing for 0.5h |
≥24 N/25mm |
| Standing for 24hrs |
≥35 N/25mm |
|
|
Holding power |
≥24 hrs |
|
|
Density |
0.99-1.02 g/cm3 |
|
Application of Acrylic Foam Tape
1. Automobile industry: weather strip, side strip, nameplates, sun visor, cushioning protector, roof rubber
2. Electronics: LCD, laptop, mobilephone, PDA, fixation of backlight frame and shading
3. Others: nameplates, radiator, silk-screen and free industry
