Copper conductive tape is using conductive copper foil as backing material and coated with acrylic conductive adhesive. Copper conductive tape is mainly used for electrical use, both of the copper film and adhesive are conductive.
Share

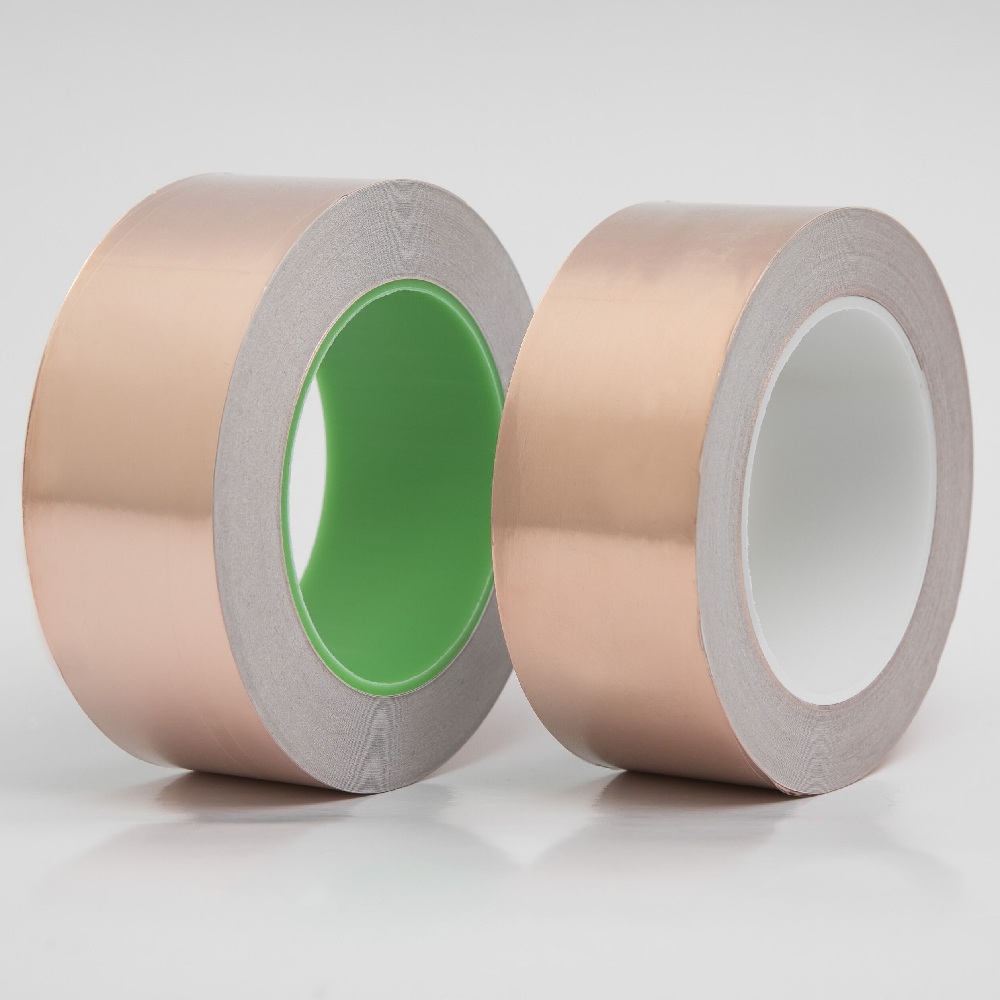

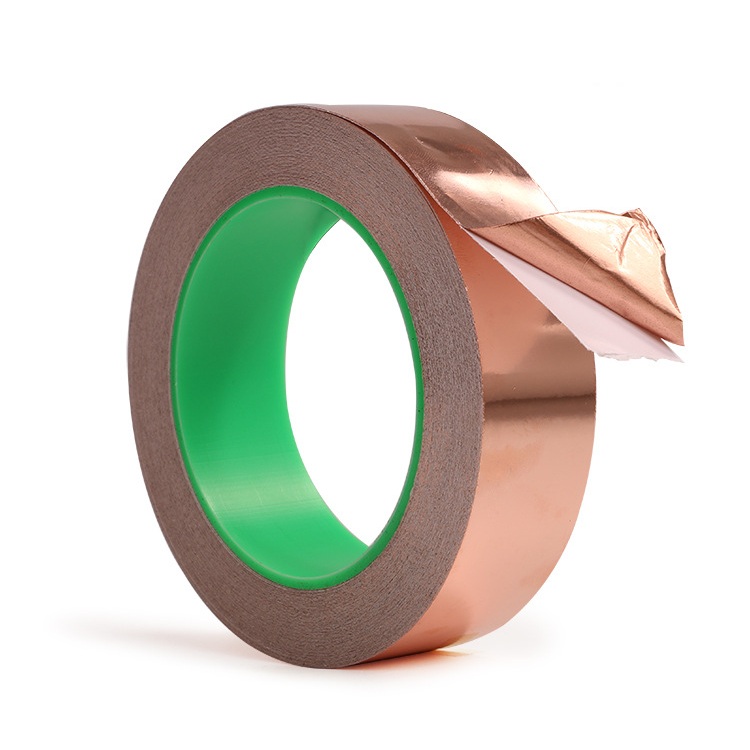

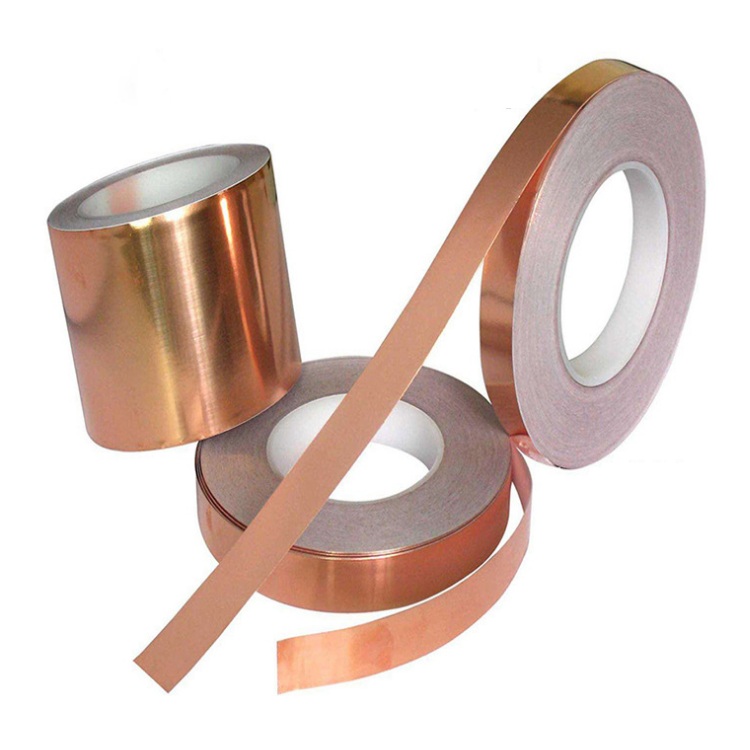

Details of Copper Conductive Tape
Backing: Conductive copper foil
Color : Brown
Adhesive: Acrylic conductive adhesive/ Acrylic non-conductive adhesive

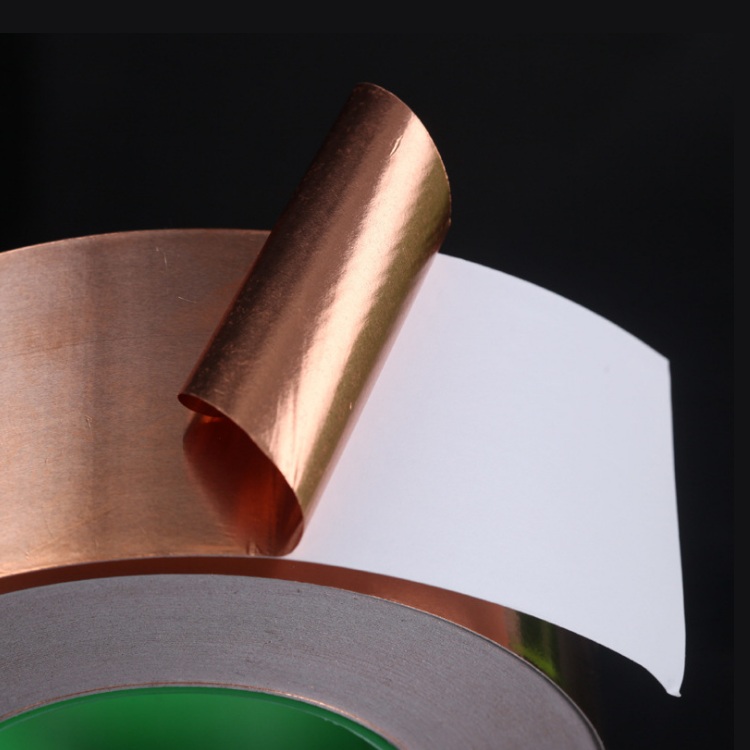

Release liner: White paper liner
Type: Single conductive / Double sided contuctive
Jumbo roll size: 380mm/500mm/600mm x 50m
Log roll size: 380mm/500mm/600mm x 33m

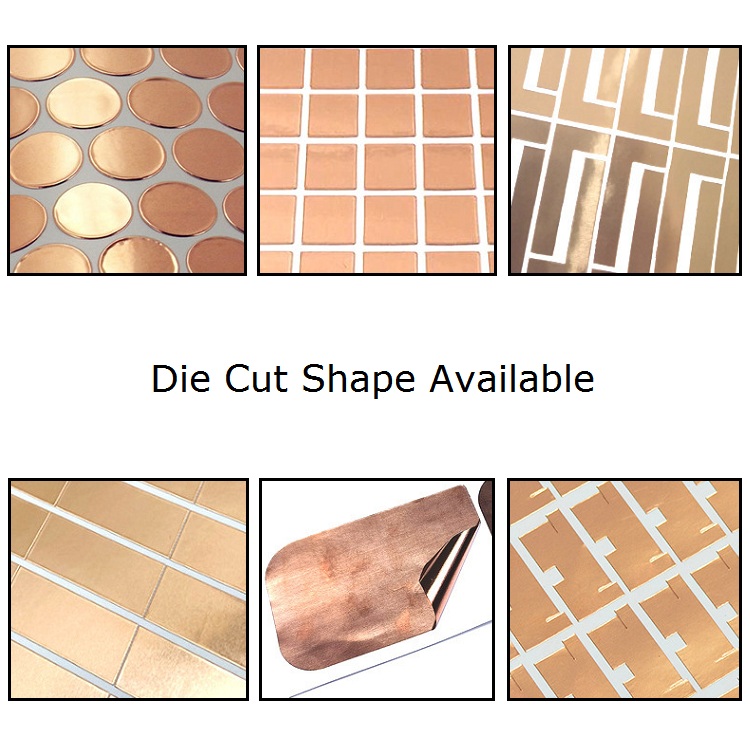

Cut roll size: 12mm x 33m/45mm x 25m or customized size
Features of Copper Conductive Tape

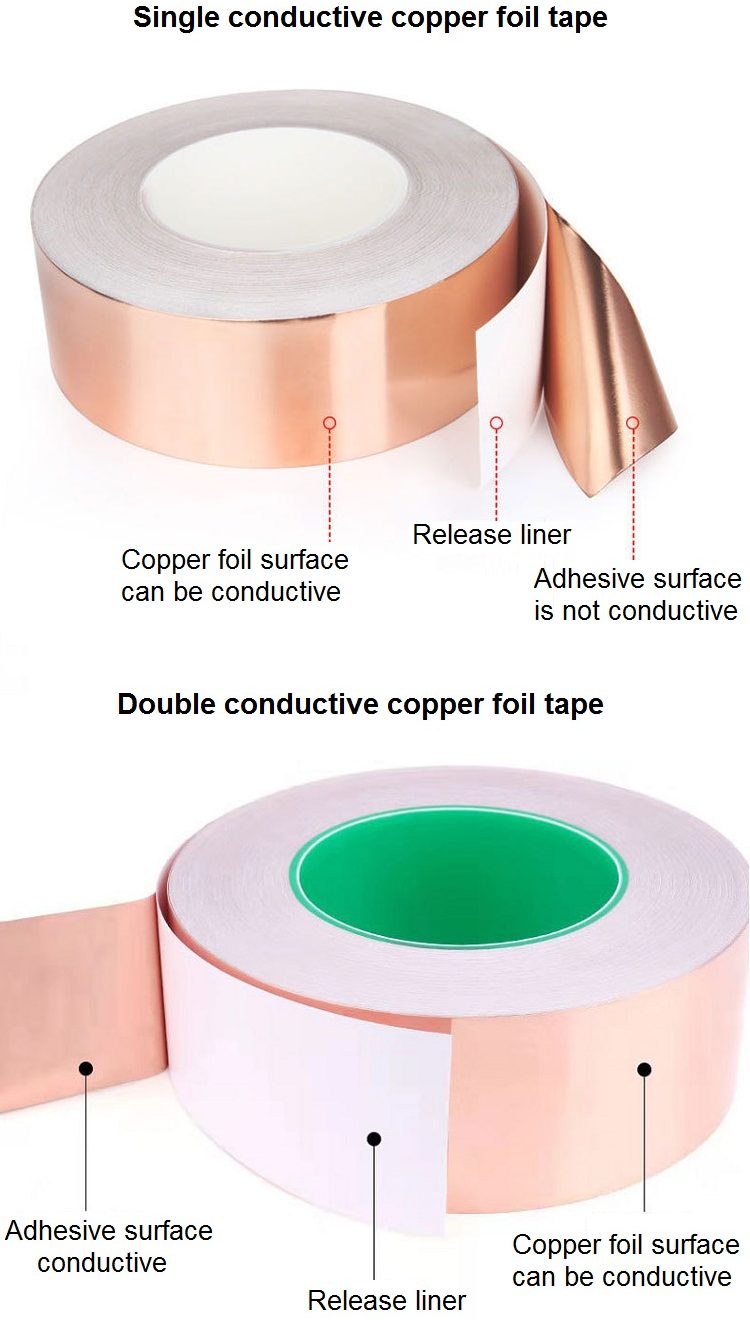

Types of Copper Conductive Tape
Models of Copper Conductive Tape
| Part No. | Material | Total Thickness |
| CCT650 | Conductive copper foil | 50mic |
| CCT1660 | Conductive copper foil | 60mic |
| CCT2670 | Conductive copper foil | 70mic |
| CCT3680 | Conductive copper foil | 80mic |
| CCT4690 | Conductive copper foil | 90mic |
| CCT56100 | Conductive copper foil | 100mic |
Technical Data of Copper Conductive Tape
|
We can do different thickness/size, the following is for reference only
|
|
|
Part No.
|
CCT150
|
|
Backing material
|
Conductive copper film
|
|
Release liner
|
White release paper
|
|
Adhesive
|
Acrylic conductive adhesive
|
|
Total thickness
|
0.15mm ±10%
|
|
Copper film thickness
|
0.10mm ±10%
|
|
Continuous viscous fluid
|
≥ 24 Hours
|
|
180°peel strength
|
≥ 9.8N/25.4*200mm
|
|
Temperature resistance
|
-10~+110DC
|
|
Insulation resistance
|
0.03~0.06Ω
|

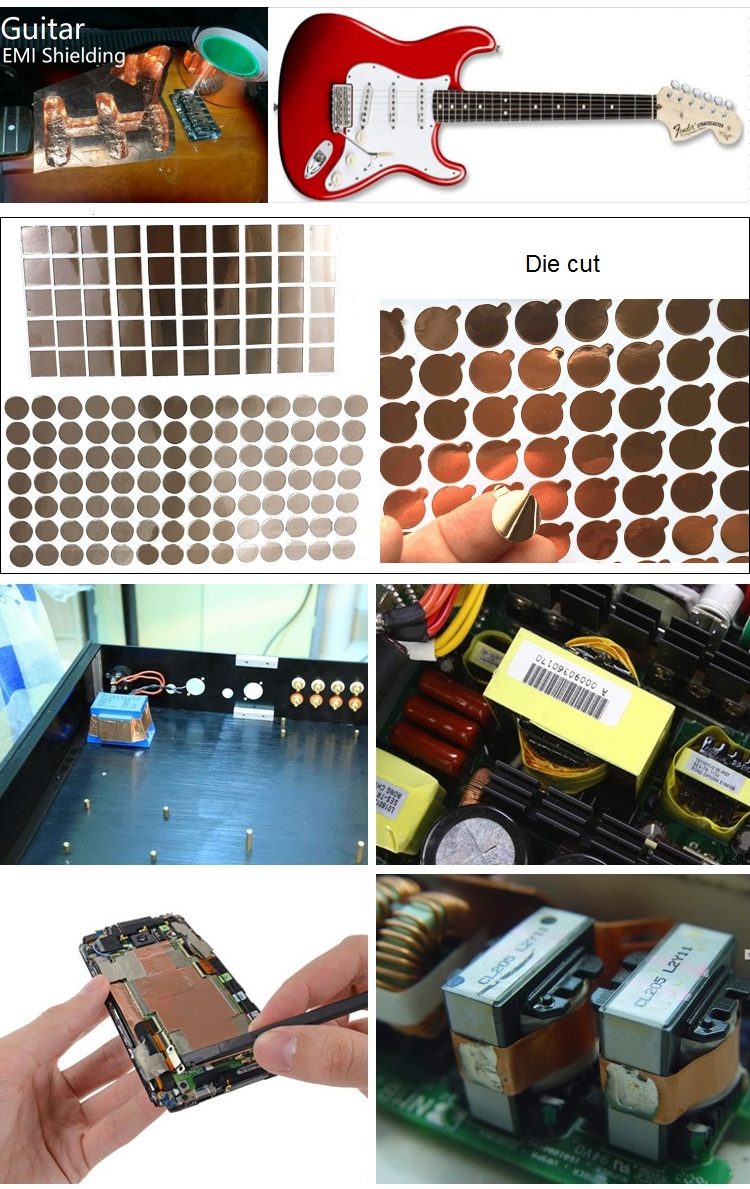

Applications of Copper Conductive Tape
1. Electrical connection between surfaces (sheets/foils)
2. Mounting transparent foils, windows for EMI/RFI shielding
3. Shielding in housings and faraday cages
4. Cable shielding (Wrap around the cable)
5. Temporary shielding during emission and immunity tests
6. Antistatic floor (ESD floor)
7. EMI/RFI shielding (EMI/RFI shielding tape/gasket)
