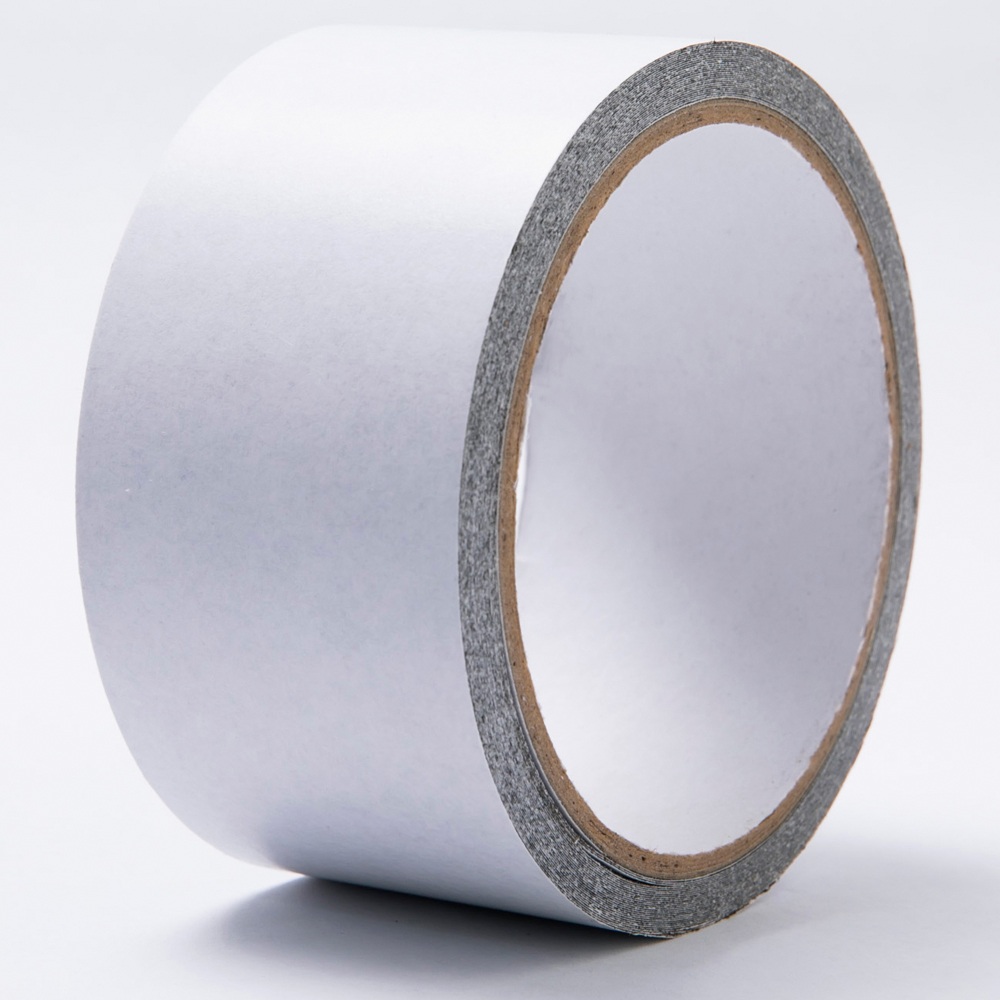

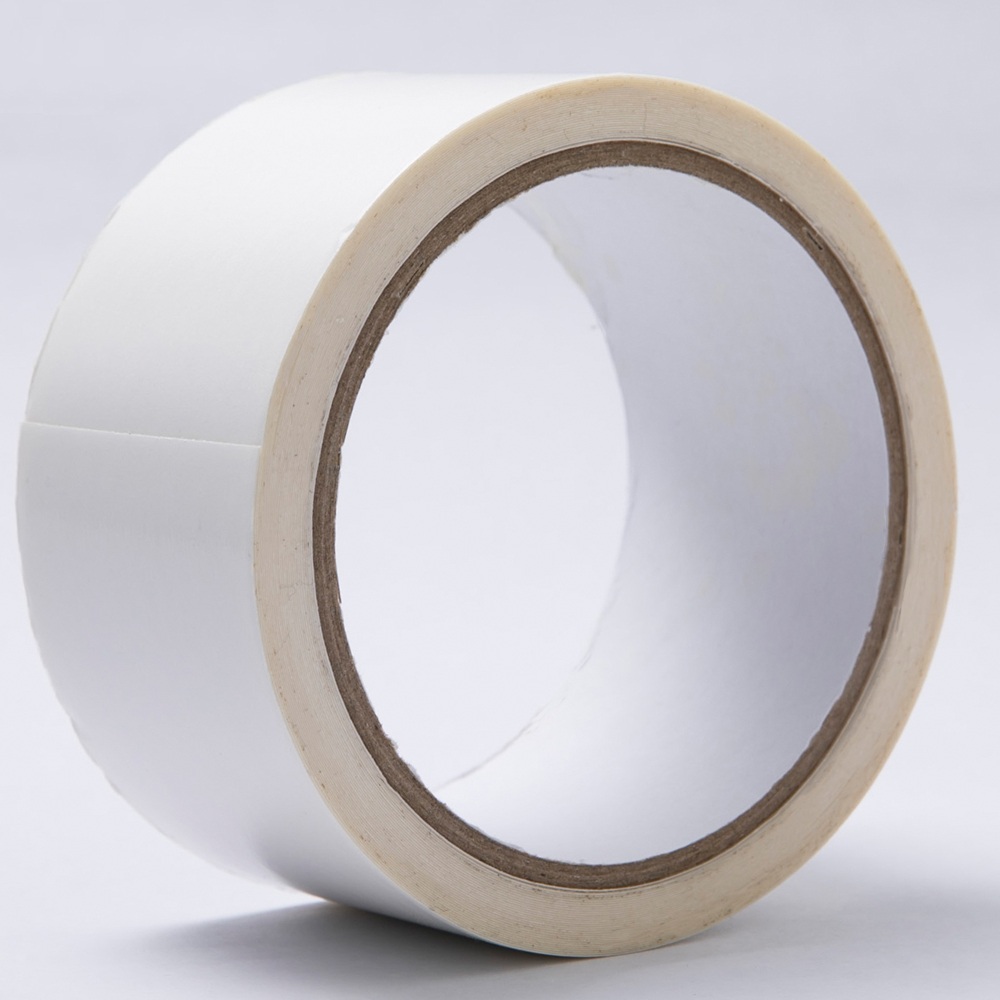

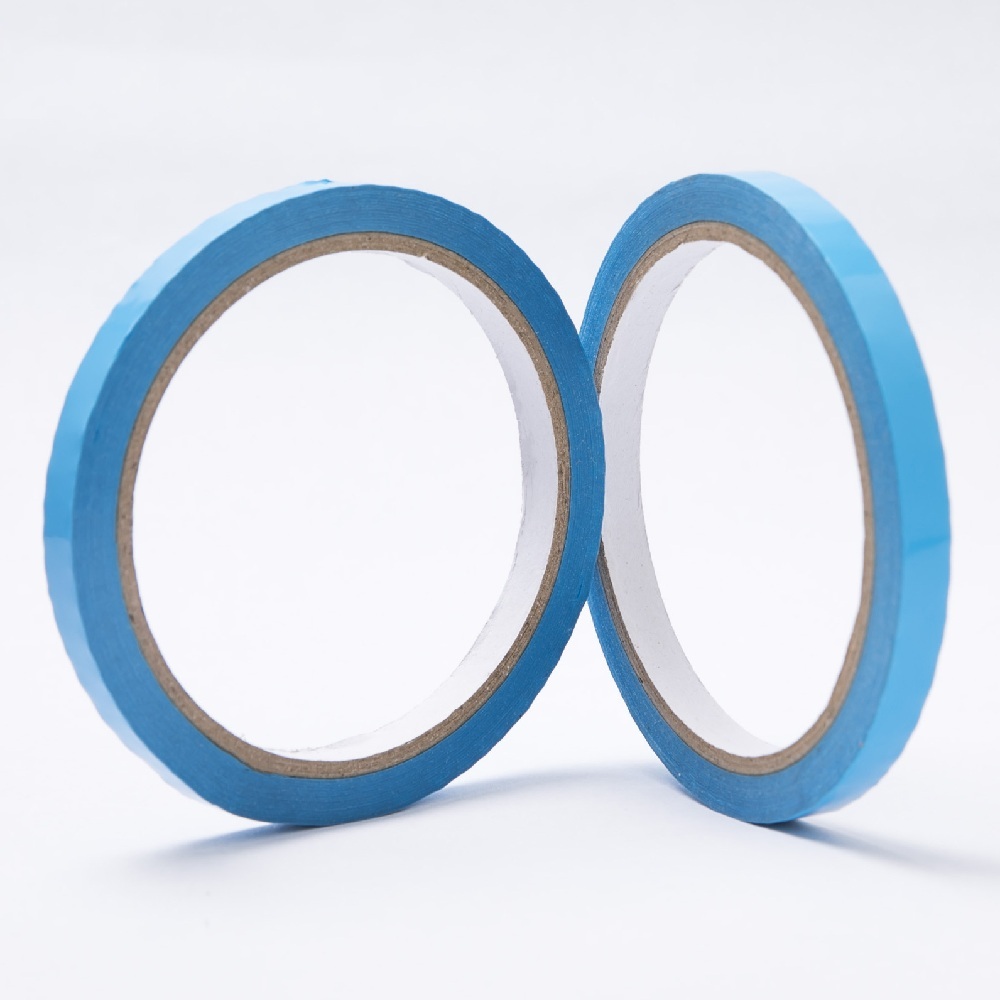

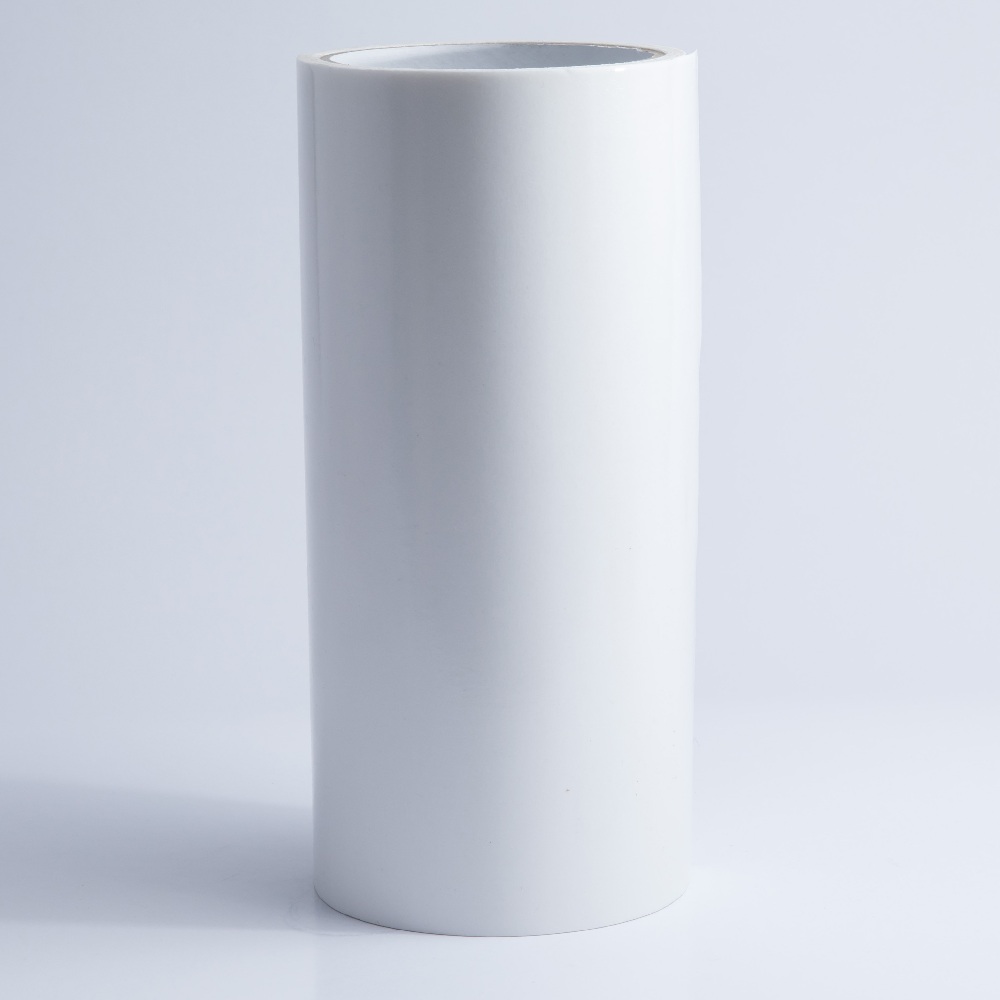

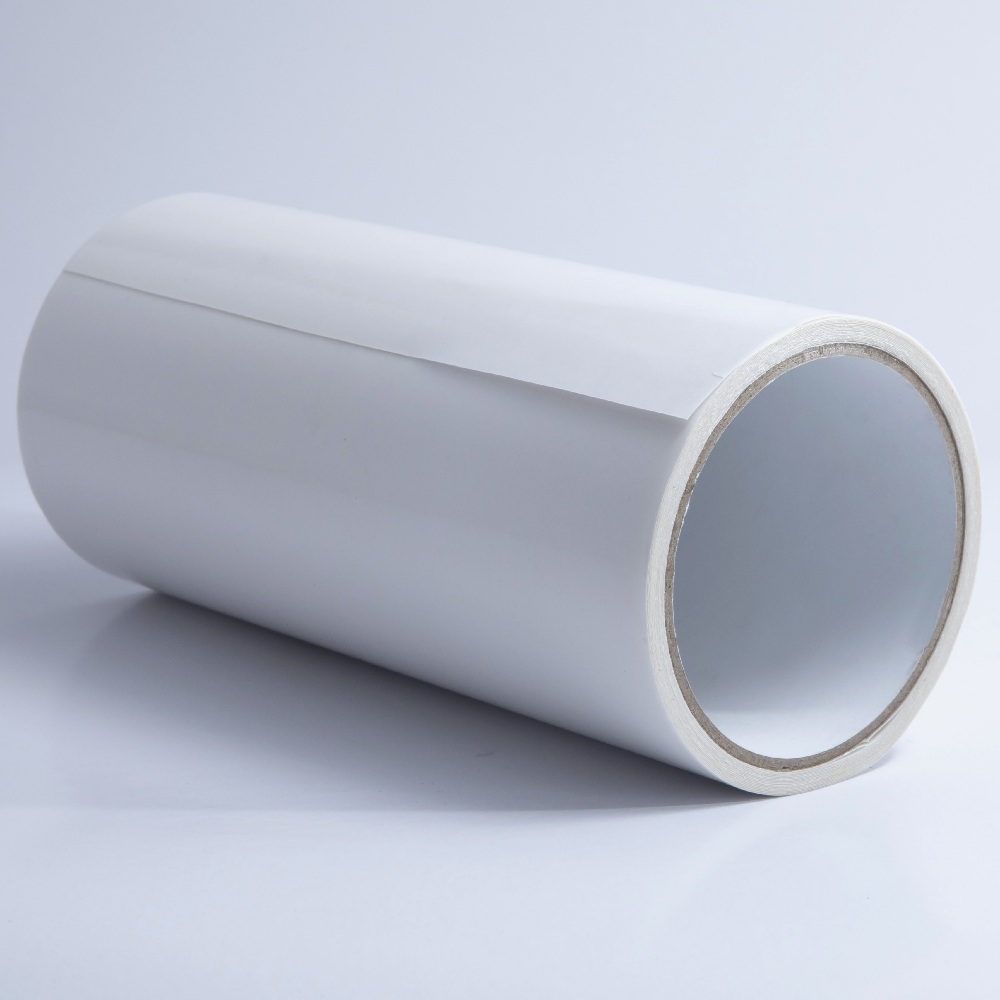

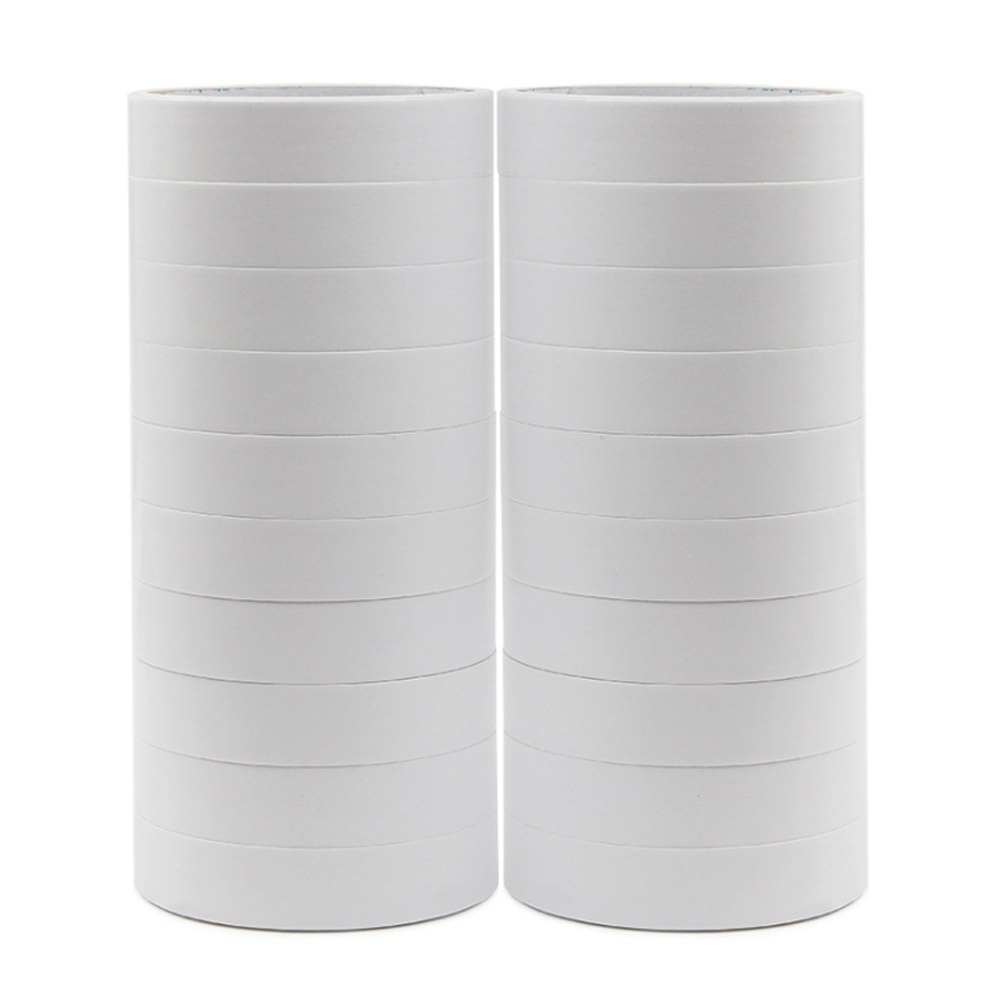

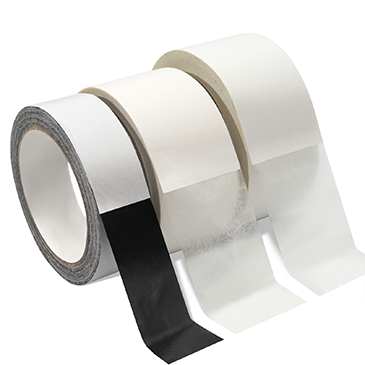

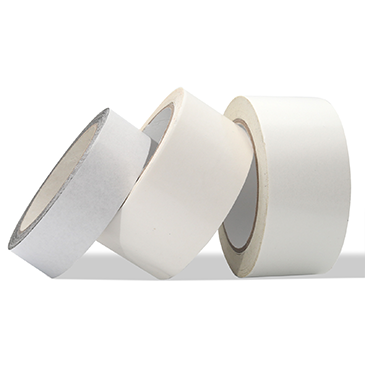

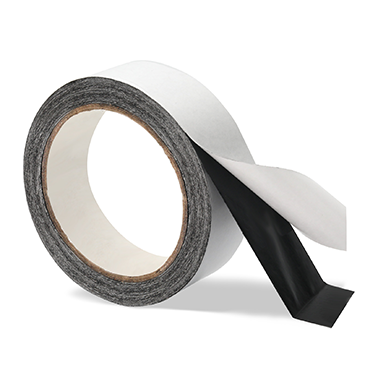

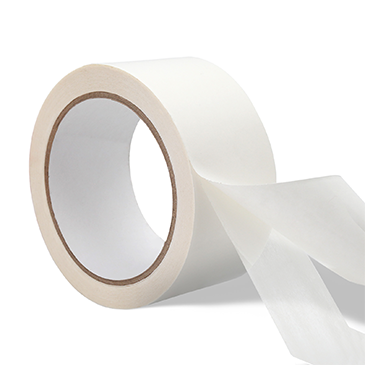

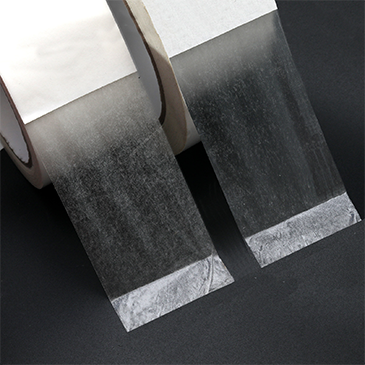

Double Sided Tissue Tape is using tissue as backing material and coated with pressure sensitive adhesive on double sides.
Share
Details of Double Sided Tissue Tape
Backing: Tissue
Adhesive: Hot melt/ water acrylic/ solvent acrylic adhesive

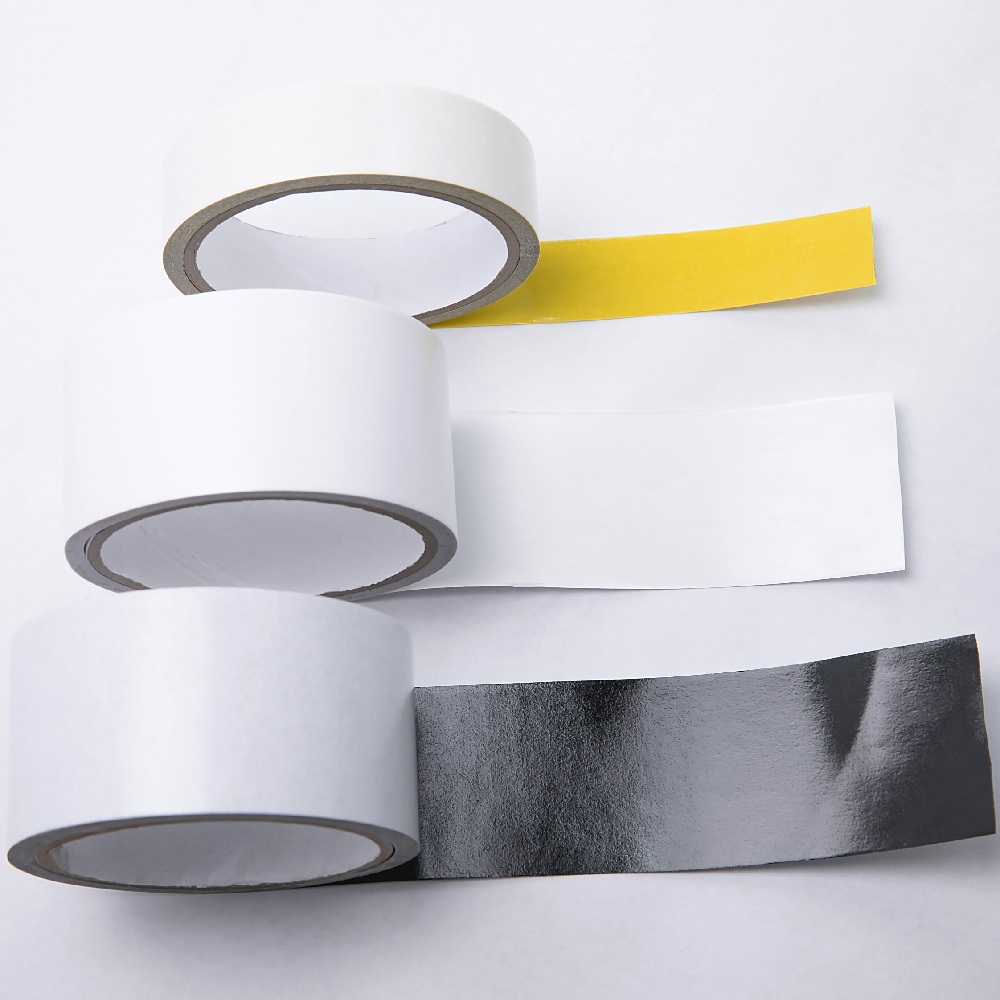

Adhesive color: Transparent/ yellow/ black
Liner: White/ brown/ light yellow/ yellow glassine paper, etc
Thickness: 70-160mic
Jumbo roll size: 1020mm/1240mm x 1000m
Log roll size: 1020mm/1240mm x 50m
Features of Double Sided Tissue Tape
Models of Double Sided Tissue Tape
|
General Usage
|
|||
|
Part No.
|
Adhesive
|
Backing
|
Total Thickness
|
|
DTS70M – DTS160M
|
Hot melt adhesive
|
Tissue
|
70-160mic
|
|
DTS80W – DTS160W
|
Water acrylic adhesive
|
Tissue
|
80-160mic
|
|
DTS80W – DTS1 60W
|
Solvent acrylic adhesive
|
Tissue
|
80-160mic
|
|
High Temperature Usage
|
|||
|
Part No.
|
Adhesive
|
Temperature (Max.)
|
Total Thickness
|
|
DTS90A – DTS160A
|
Solvent acrylic adhesive
|
100°C
|
70-160mic
|
|
DTS90H – DTS160H
|
Solvent acrylic adhesive
|
150°C
|
80-160mic
|
|
DTS90HX – DTS160HX
|
Solvent acrylic adhesive
|
180°C
|
80-160mic
|
Technical Data of Double Sided Tissue Tape
|
The following parameters are for reference only |
|
|
Model |
DTS80M |
|
Material |
Tissue |
|
Adhesive |
Hot melt adhesive |
|
Color |
Translucent |
|
Liner |
White/ light yellow/yellow glassine paper |
|
Thickness |
80±5 mic |
|
Width |
1020±20 mm |
|
Length |
1000 m |
|
Initial tack 14#steel ball |
≤120 mm |
|
Peel adhesion to steel |
≥10 N/25mm |
|
Holding power |
≥1.5 HR/IN |
Applications of Double Sided Tissue Tape
Used for leather, shoes positioning, for computer embroidery, garment positioning, for sealing plastic or paper bags, for sticking wall paper & other paper crafts, for nameplates, die cutting, paper splicing, for foam lamination, for plastic & film switches mounting, for objects sticking in TV, etc.
