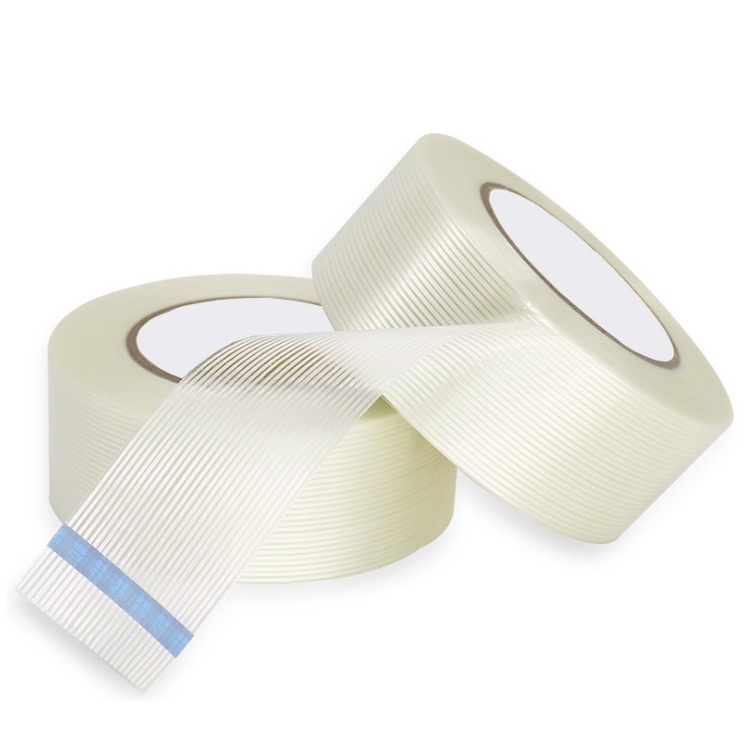

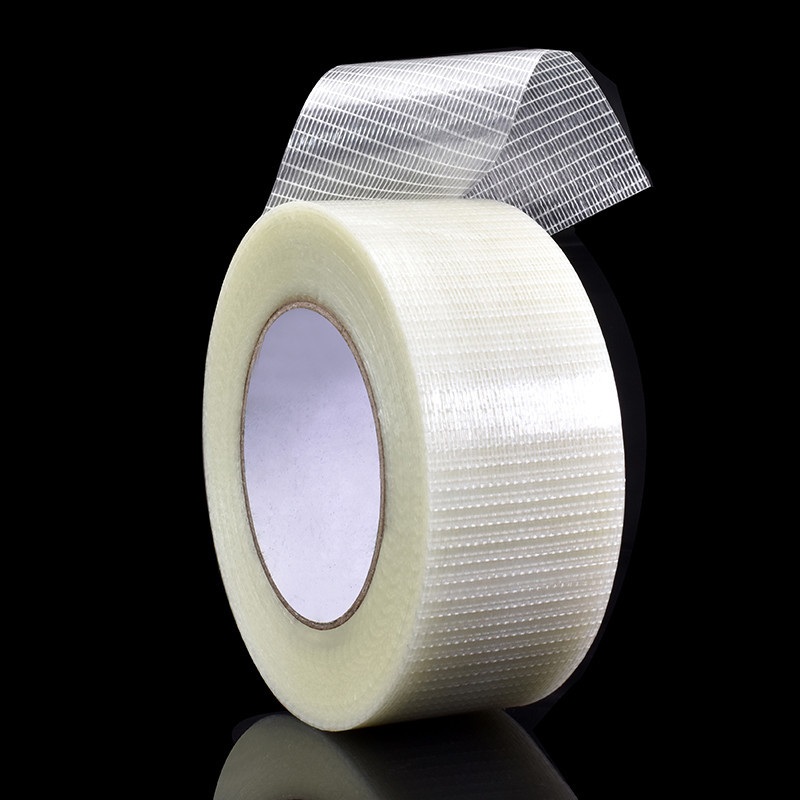

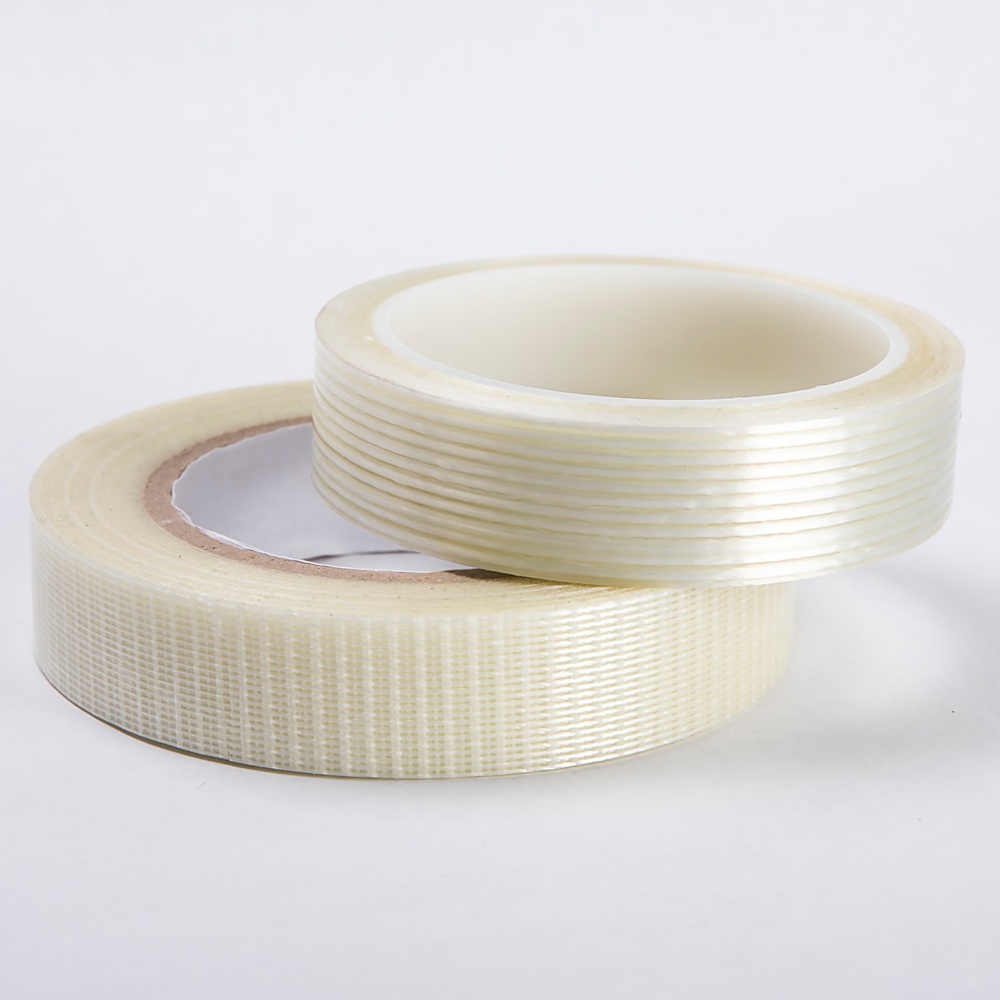

Fiberglass filament tape is coated with hot melt adhesive or solvent adhesive and fiberglass polyester film carrier with one way/cross way reinforce. It is used for fixing parts in white goods and packaging, holding and bundling, and widely used in household electrical appliance.
Share
Features of Fiberglass Filament Tape
Material: PET/Bopp film + Fiberglass mesh

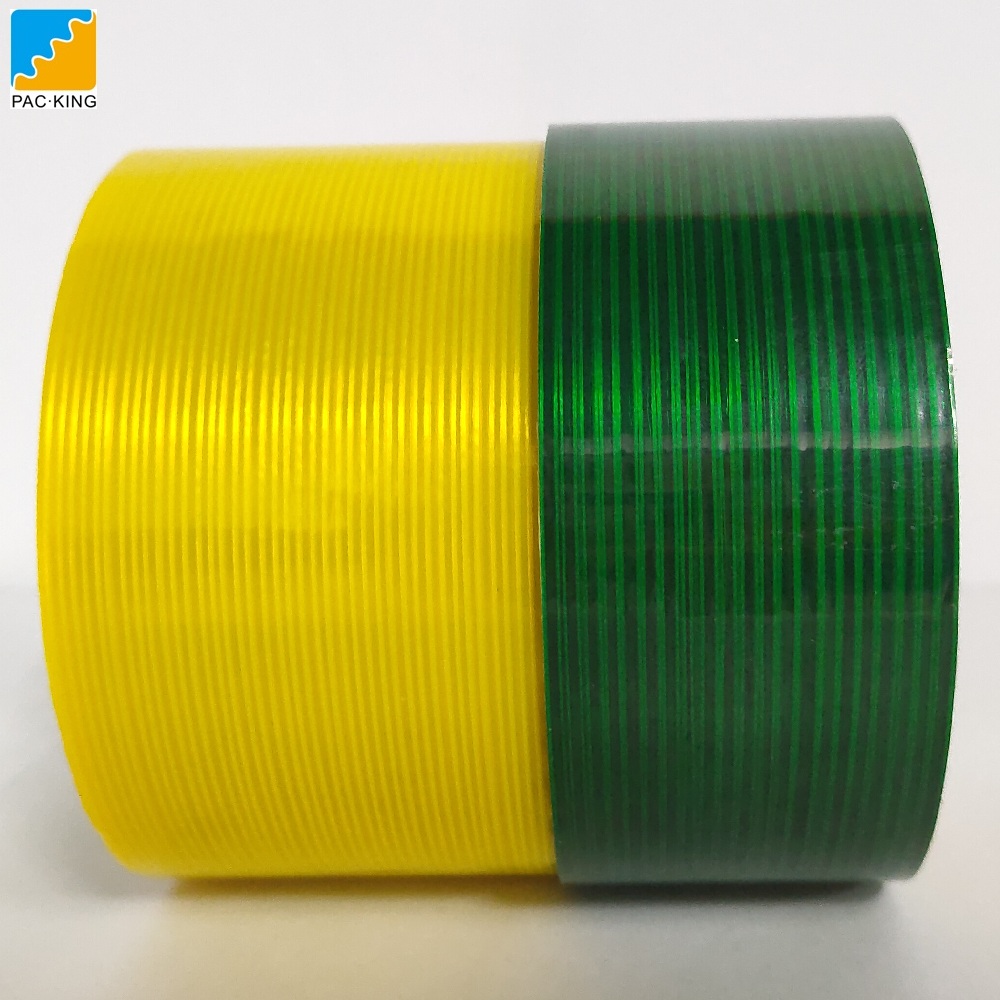

Color: White/Yellow/Green, etc
Thickness: 110-180mic

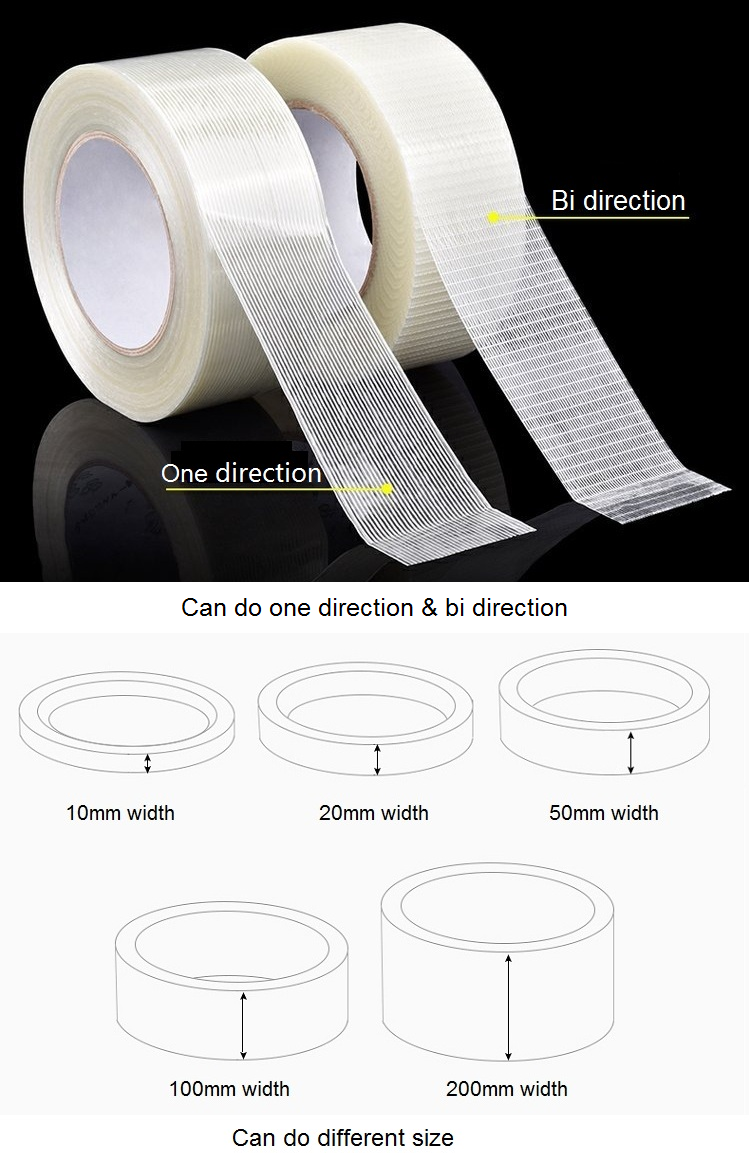

Cut Roll Size: 25mm/48 x 25m/50m
Size(width): 50mm & 30mm
Jumbo Roll Size: 1020mm x 1000m
Features of Fiberglass Filament Tape
Technical Data of Fiberglass Filament Tape
|
We can do different width/thickness/length, the following is for reference only
|
|
|
Part No.
|
FGT302
|
|
Backing thickness
|
25mic
|
|
Backing material
|
Fiberglass polyester film with
one way reinforce
|
|
Total thickness
|
130±2mic
|
|
Adhesive
|
Hot melt adhesive
|
|
Peel adhesion at 180
|
>25N/25mm
|
|
Tensile Strength
|
>480N/25mm
|
|
Rolling ball tack
|
>15# (Ball no.)
|
| Elongation | 3 ~ 5% |
|
Holding power |
>72hrs |
| Service temperature range | -10 ~ +70℃ |
| Filament density | 660 stripes/1020mm |
Applications of Fiberglass Filament Tape
For metal/wood materials furnishing packaging, electric equipment packaging (like washing machine, refrigerator, etc)
