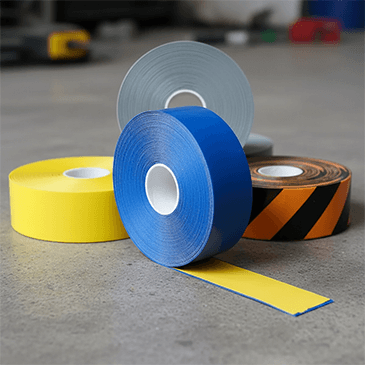

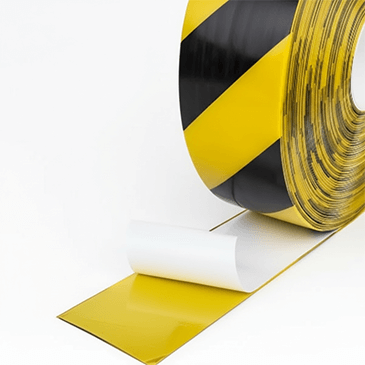

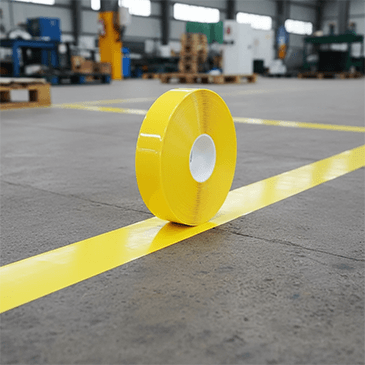

Heavy Duty Floor Marking Tape
Heavy Duty Floor Marking Tape is designed for long-term, high-traffic floor marking and safety zoning in industrial and commercial environments. Made from extra-thick PVC material with strong adhesive backing, it provides clear, durable, and highly visible markings on concrete, epoxy, tile, and other hard floor surfaces. Compared with standard floor tapes, this heavy-duty version offers superior wear resistance and load-bearing performance, making it ideal for areas with frequent foot traffic, pallet movement, and forklift operations. It is widely used for aisle marking, safety warnings, traffic guidance, and 5S workplace organization.
Heavy duty floor marking tape is an extra-thick PVC tape with a rubber-based pressure-sensitive adhesive, used to mark warehouse aisles, 5S lines, forklift traffic zones and hazardous areas. PAC KING’s version comes in 0.8–2.0 mm thickness, seven colors plus yellow/black, and withstands continuous forklift, pallet-truck and pedestrian traffic.
Key Specifications
| Material | Extra-thick PVC film |
| Adhesive | Rubber-based pressure-sensitive adhesive (single-sided) |
| Total Thickness | 0.8 / 1.0 / 1.3 / 1.6 / 1.8 / 1.9 / 2.0 mm |
| Roll Size | 50 mm × 30 m · 100 mm × 30 m · custom |
| Colors | Yellow, Red, Blue, Green, Black, White, Yellow/Black |
| Performance | Wear-resistant · Compression-resistant · Waterproof |
| Peel Strength | Contact us for the technical datasheet |
| Temperature Range | Contact us for the technical datasheet |

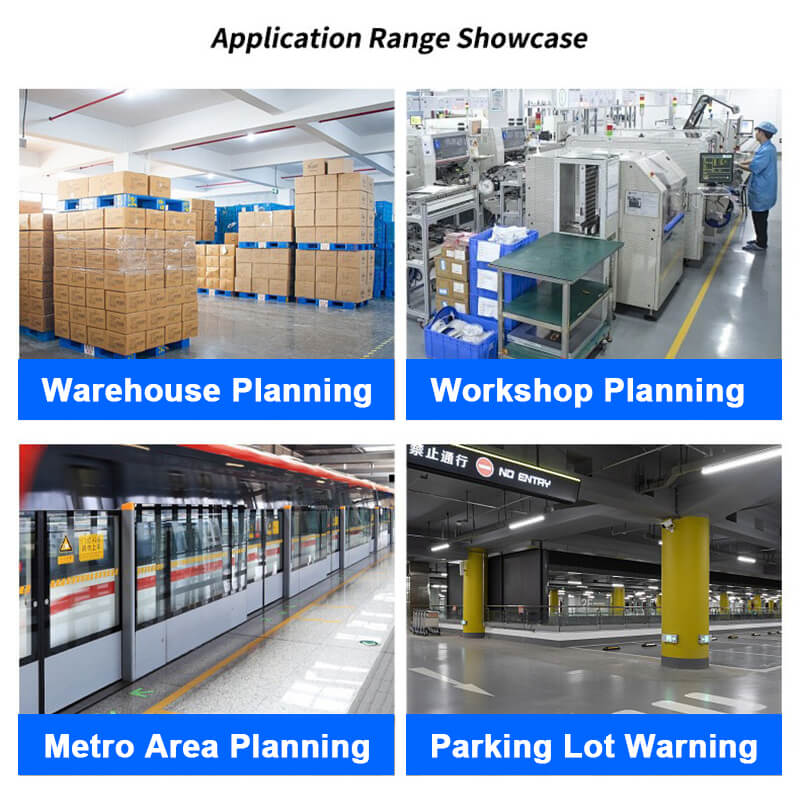

Applications

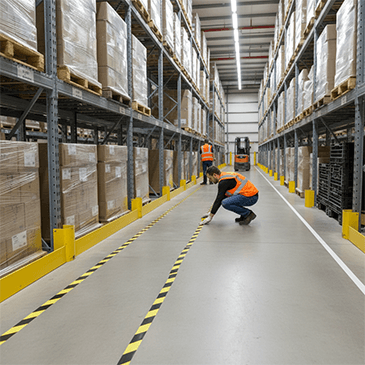

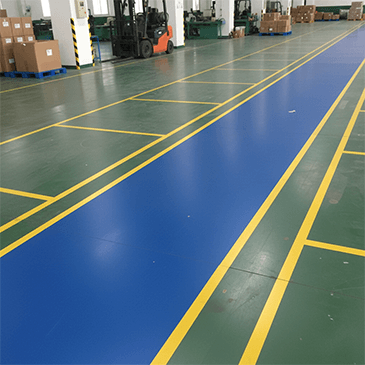

- Warehouse aisles & pedestrian lanes
- 5S visual management & material zones

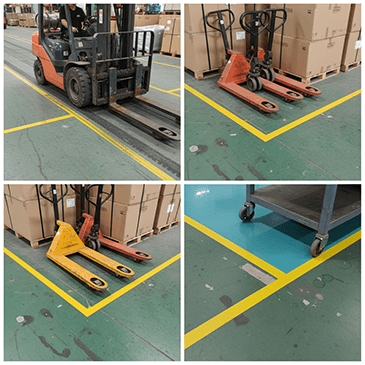

- Forklift, cart and pallet-truck traffic zones
- Hazard, fire-point and no-go boundaries
- Parking bays, walkways and corridors
- Assembly cells and WIP buffers
Colors & Color Code
Available in Yellow, Red, Blue, Green, Black, White and Yellow/Black. Common industry color meanings follow ANSI Z535.2 and OSHA 1910.144 — confirm against your site safety plan.
- Yellow — aisle / traffic / material flow
- Red — fire / hazard / emergency
- Green — safety equipment / first aid
- White — fixed equipment / storage
- Blue — raw material / WIP
- Yellow/Black — hazard striping / no-go
Why PAC KING
- Extra-thick & compression-resistant — gauges up to 2.0 mm resist forklift and pallet traffic.
- Strong rubber PSA bond — grips concrete, epoxy and tile; edges stay down under movement.
- Peel-and-stick, no dry time — apply in minutes, no curing or line shutdown like paint.
- Made to spec for B2B — custom thickness, width, length and color via quote request.
Choose the Right Thickness
- 0.8 – 1.0 mm — pedestrian aisles and light-traffic 5S lines.
- 1.3 – 1.6 mm — mixed pedestrian and occasional cart/pallet traffic.
- 1.8 – 2.0 mm — continuous forklift and wheeled-equipment lanes.
FAQ
What is heavy duty floor marking tape made of?
Extra-thick PVC with a rubber-based pressure-sensitive adhesive, single-sided, in 0.8–2.0 mm gauges.
Can it withstand forklift traffic?
Yes — wear- and compression-resistant for forklifts, carts, pallet trucks and continuous foot traffic.
What floor surfaces does it suit?
Concrete, epoxy, tile and other hard floors after normal cleaning and degreasing.
Is it customizable?
Yes — custom thickness, width, length and color are available on request.
