PVC electrical insulation tape is using soft PVC film as backing material and coated with rubber based adhesive.
Share
Details of PVC Electrical Insulation Tape
Option: Flame retardant & non flame retardant
Model: PEI

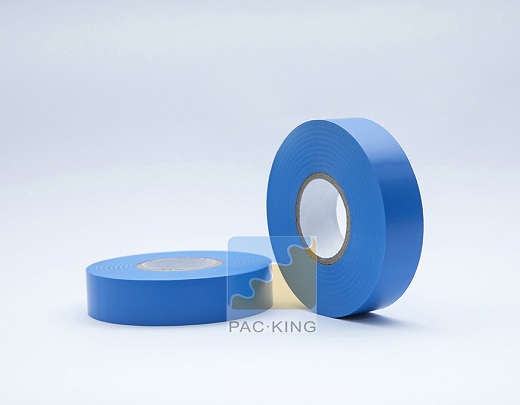

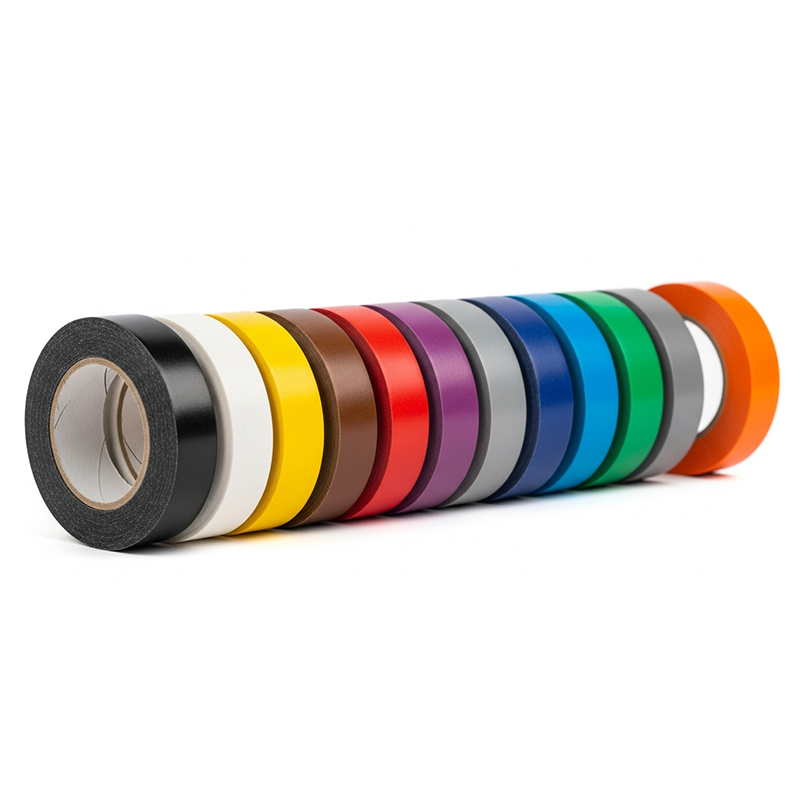

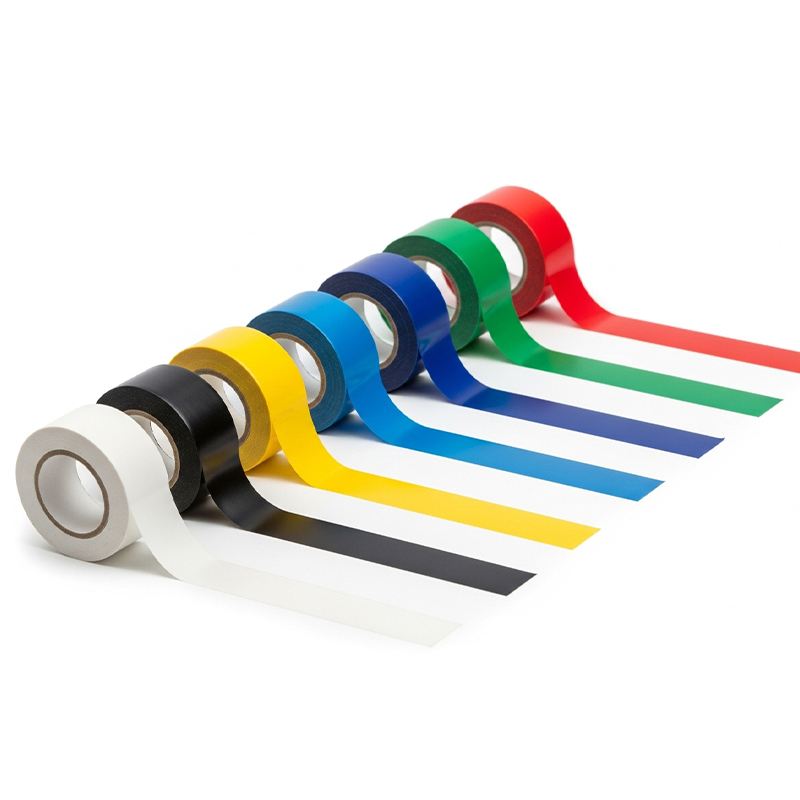

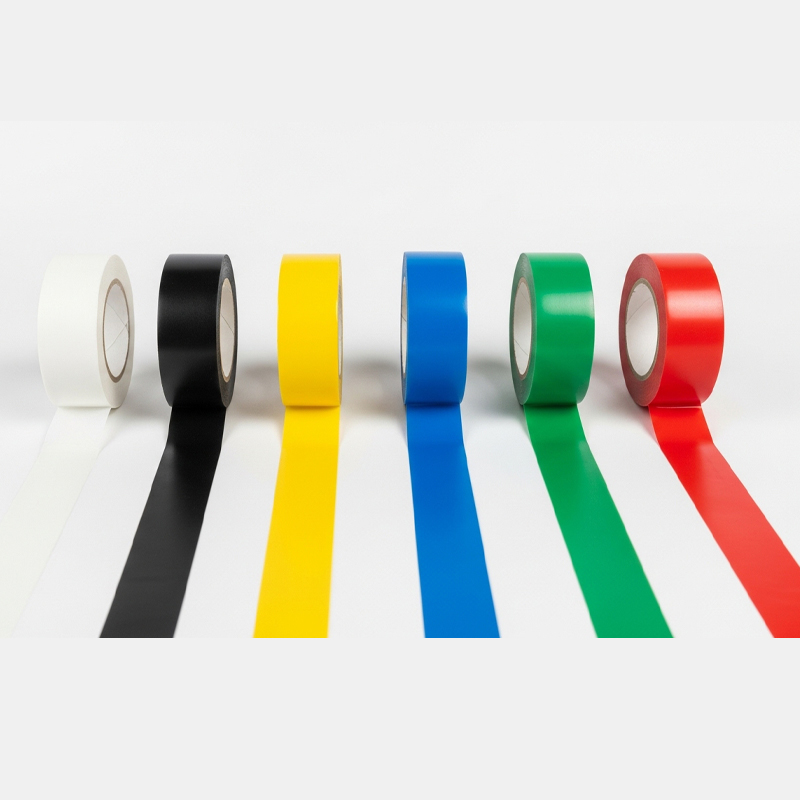

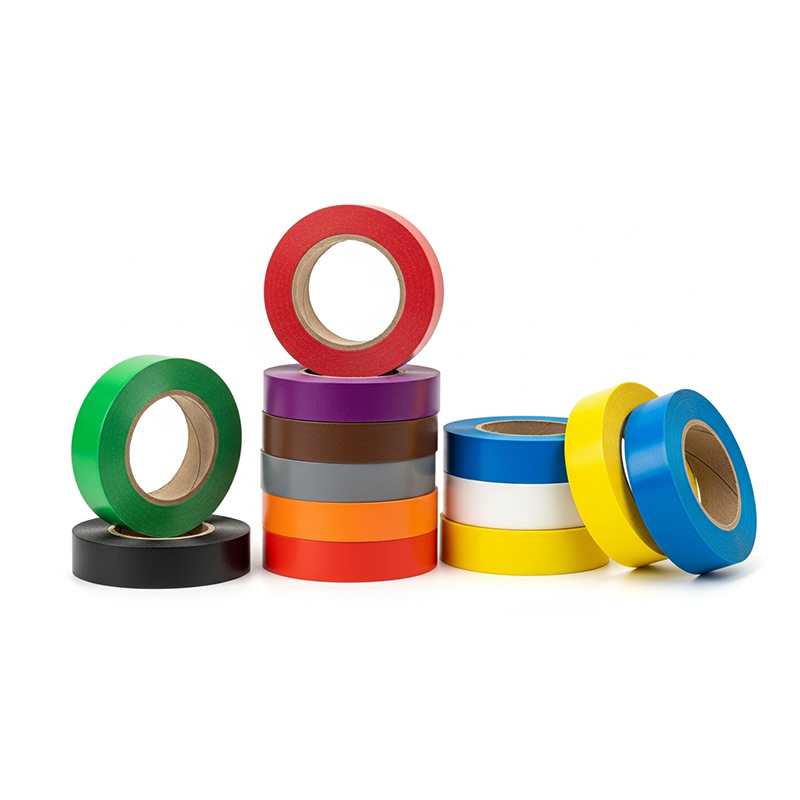

Color: Black/ Blue/ Purple/ White/ Yellow/ Red/ Silver/ Transparent/ Yellow&green
Thickness: 0.1mm – 0.2mm
Size: 1250mm x 20m & 1260mm x 9m/18m (log roll size)
19mm x 10m/20m or customized (cut roll size)
Features of PVC Electrical Insulation Tape
Size for cut roll is 19mmX10m/20m etc, for log roll is 1250mmX9/18m (longest 35m)
Inner core size is 25mm, 32mm, 38mm and 76mm
Customized sizes are available
One roll with film + round label, 10 rolls in a shrink for standard package of cut roll
Stick barcode, blister package, cardboard package and customerized package for special package
Recommended tape PEI13FR is 0.13mm x 19mm x 20m black flame retardant
Technical Data of PVC Electrical Insulation Tape
| Part No. | PEI13FR | PEI15FR | PEI13 | PEI15 |
| Thickness | 0.13mm | 0.15mm | 0.13mm | 0.15mm |
| Width | 19mm – 1250mm | |||
| Tensile Strength | 20N/cm | 24N/cm | 20N/cm | 24N/cm |
| Elongation | 180% | 200% | 180% | 200% |
| Surface | Glossy/Matte | |||
| 180° Peel Adhesion | 1.6N/cm | |||
| Temperature | 80°C (170°F) | |||
| Voltage | 600V | |||
| Flame Retarding Grade | Grade 1 | Non flame retardant | ||
Video of PVC Electrical Insulation Tape
Application of PVC Electrical Insulation Tape

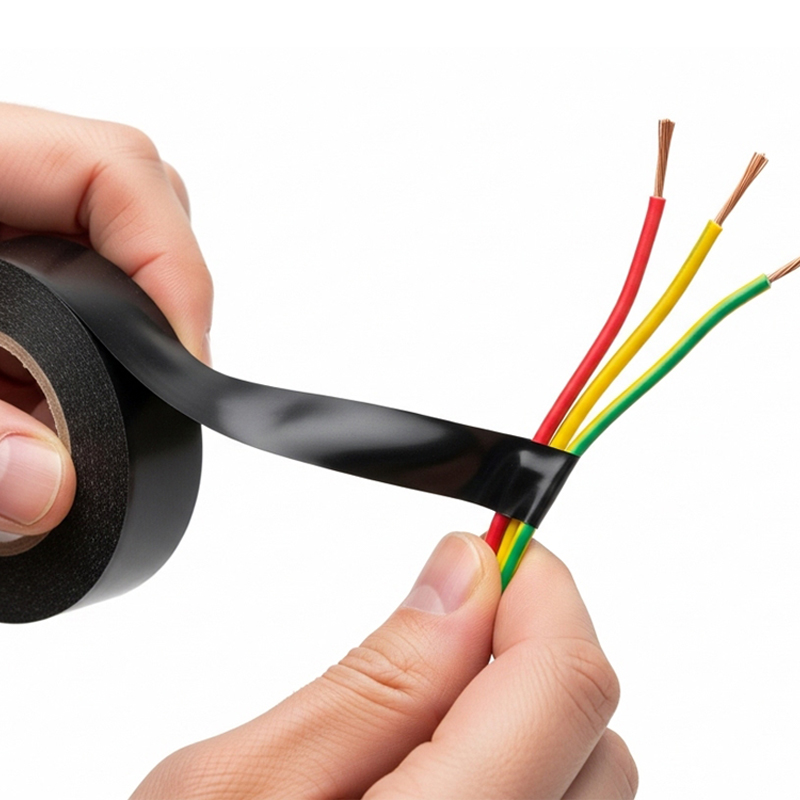

It is applying to all kinds of motor, electronic parts of the insulation fixed use, such as electric cable winding, transformer, power distribution equipment, automobile circuit, electrical engineering, household electrical, motor, capacitor and regulators.
