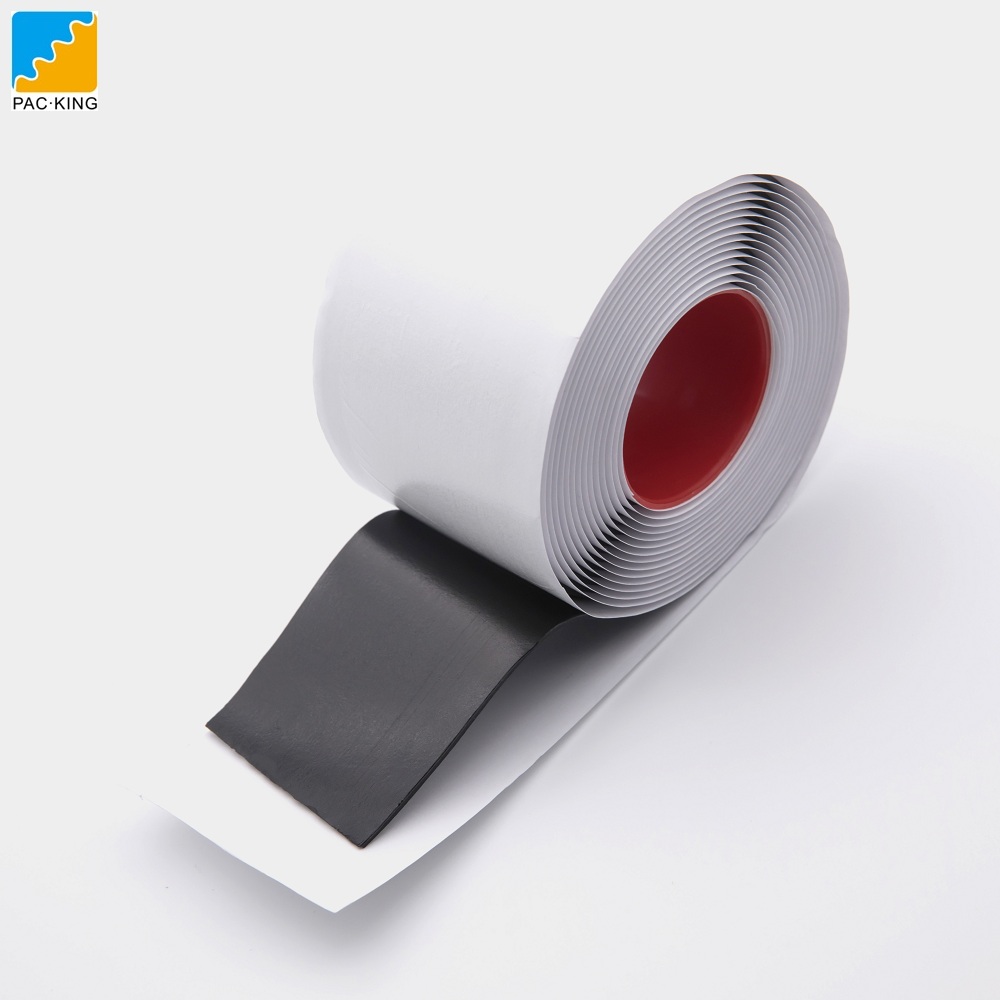

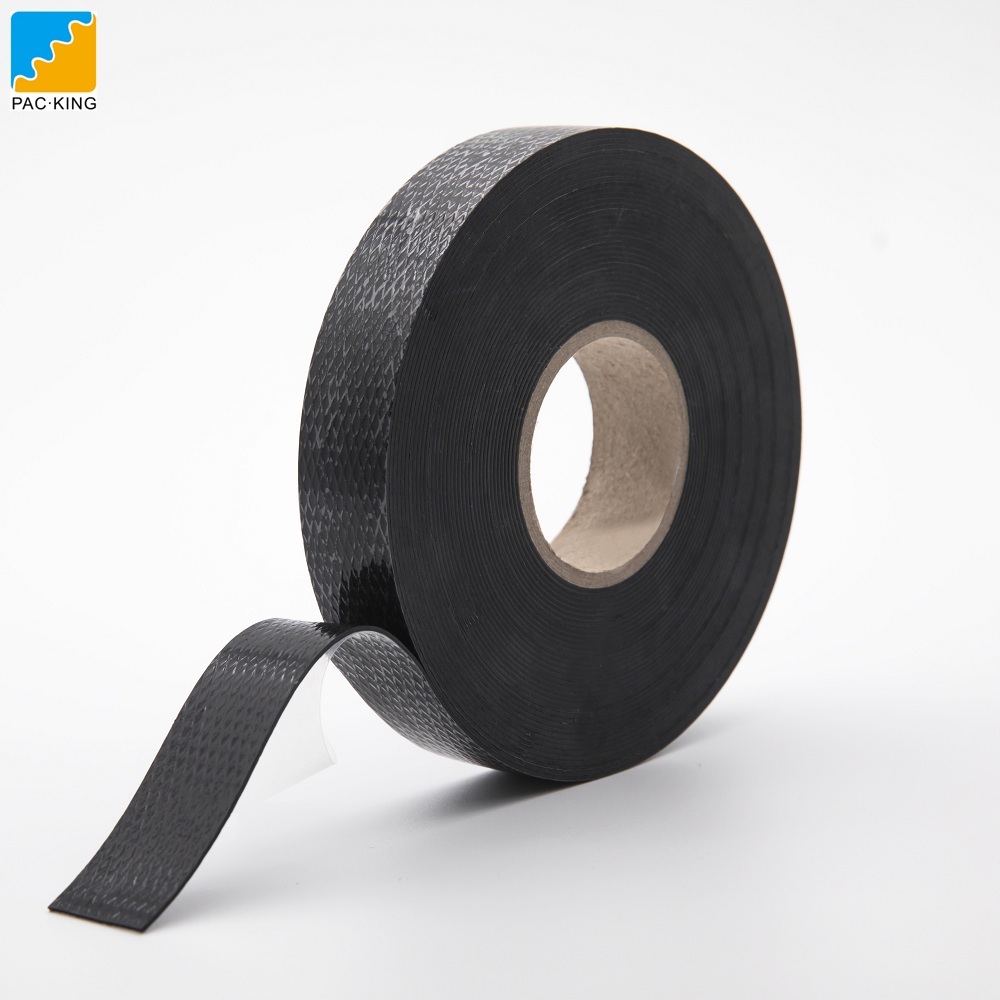

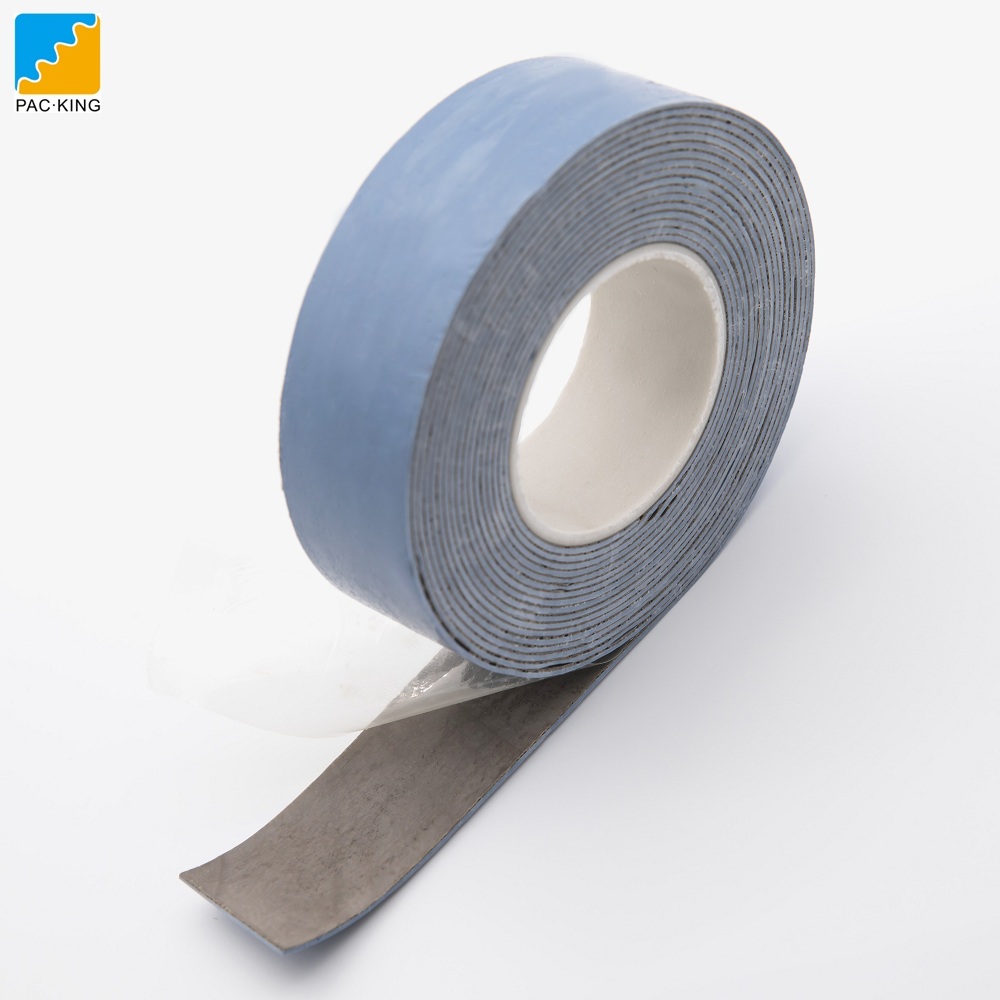

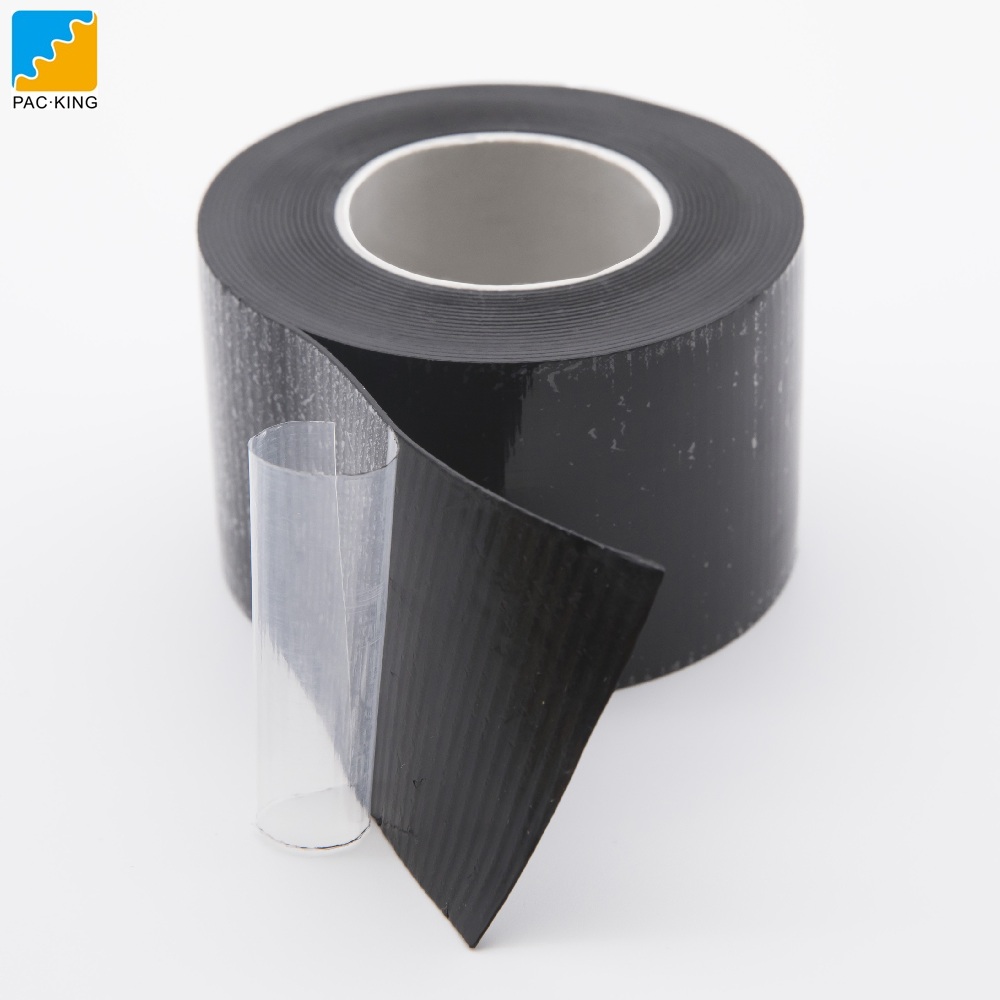

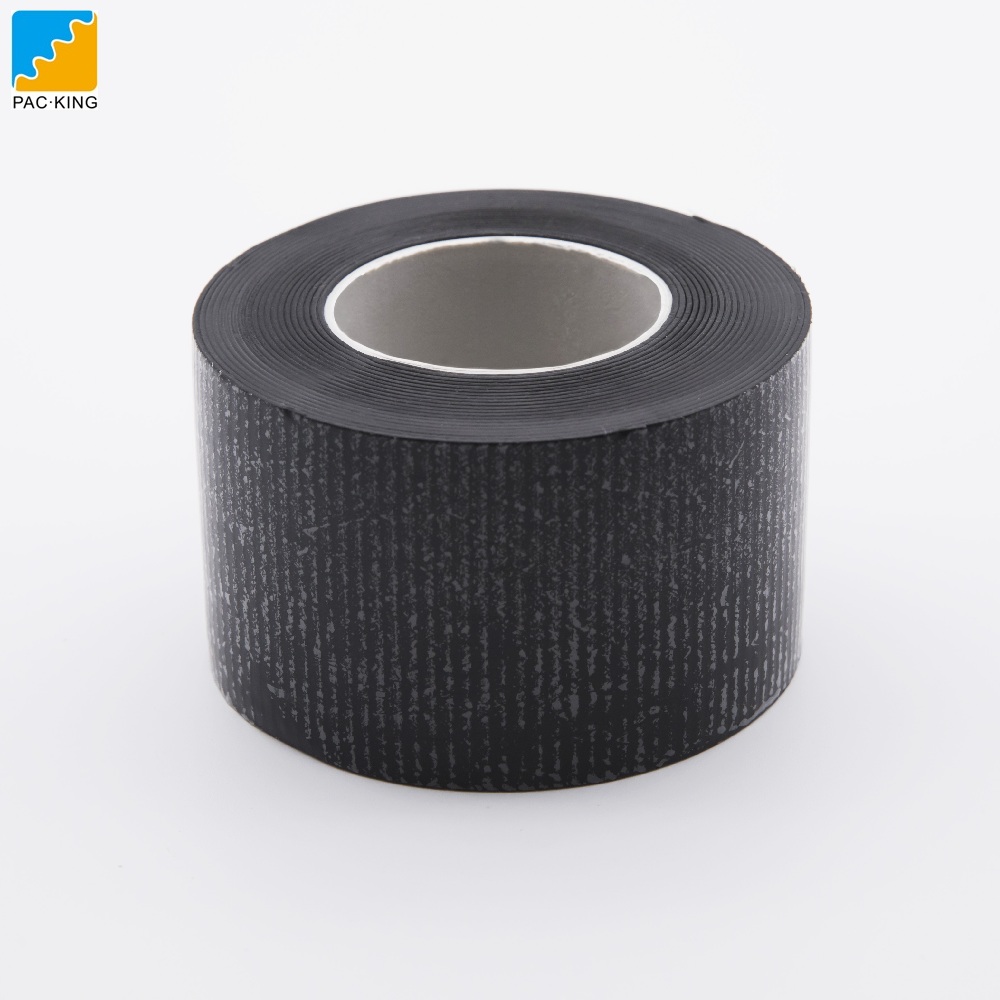

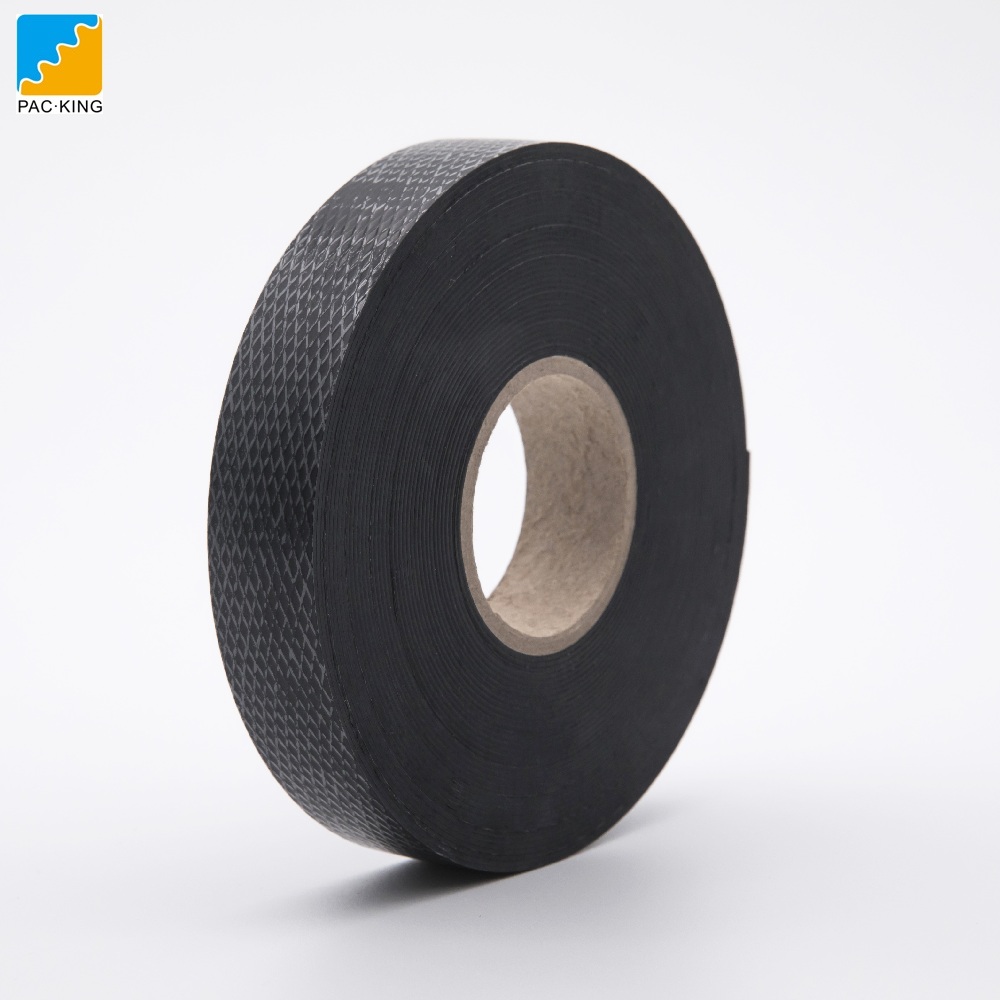

Self Fusing Tape
Self fusing tape is using ethylene-propylene rubber as backing material and coated with natural rubber adhesive. It is mainly used for insulation and protecting joins and terminations of cable, and also can be used for pipeline protection, repair, sealing, etc. When used to unlock the isolation membrane, then the tape tension 300% half to take it around, and wrapped around the base electrical tape on the outer for outer protection.

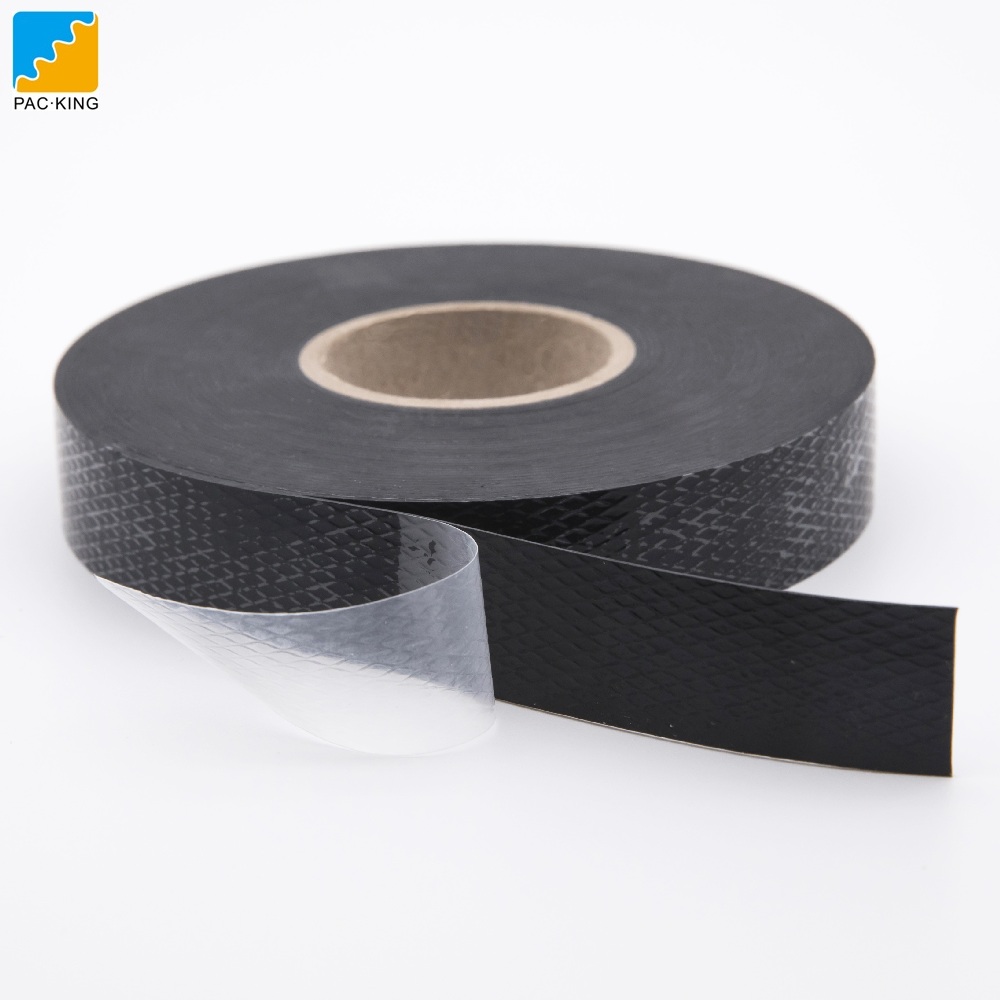

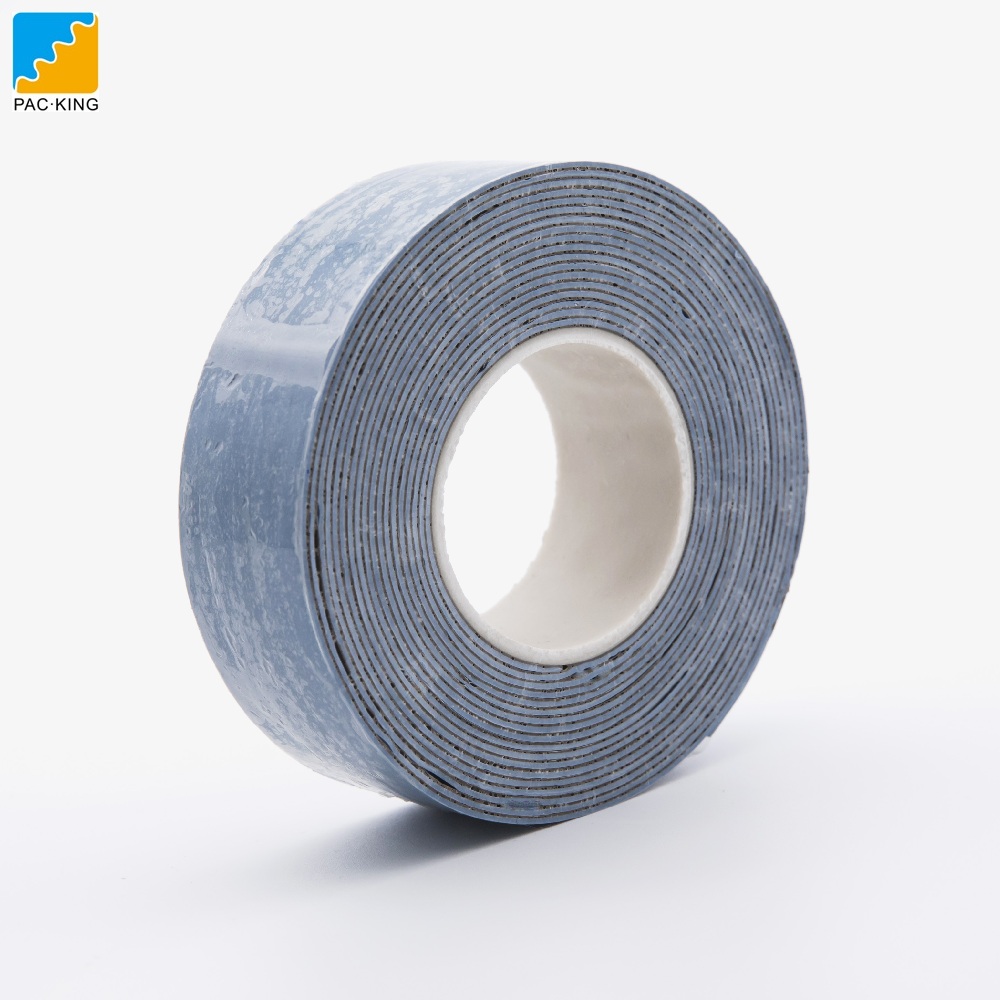

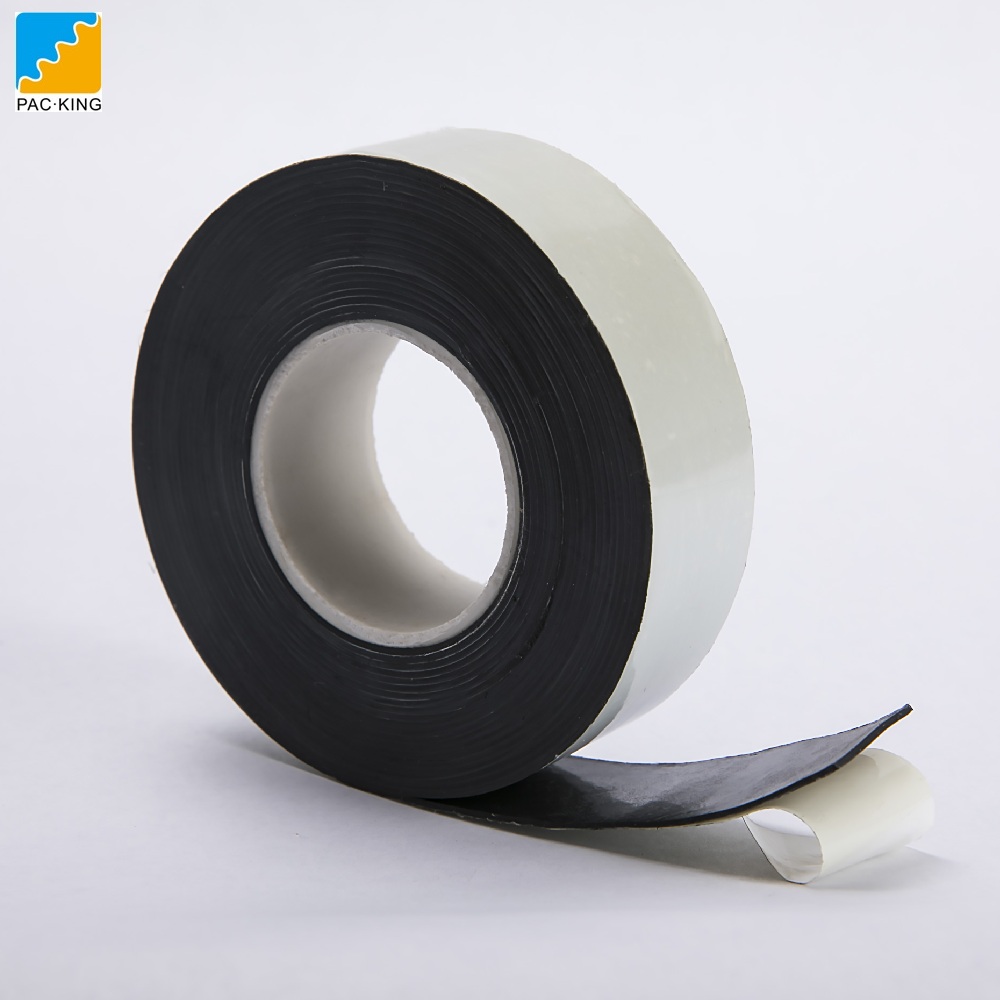

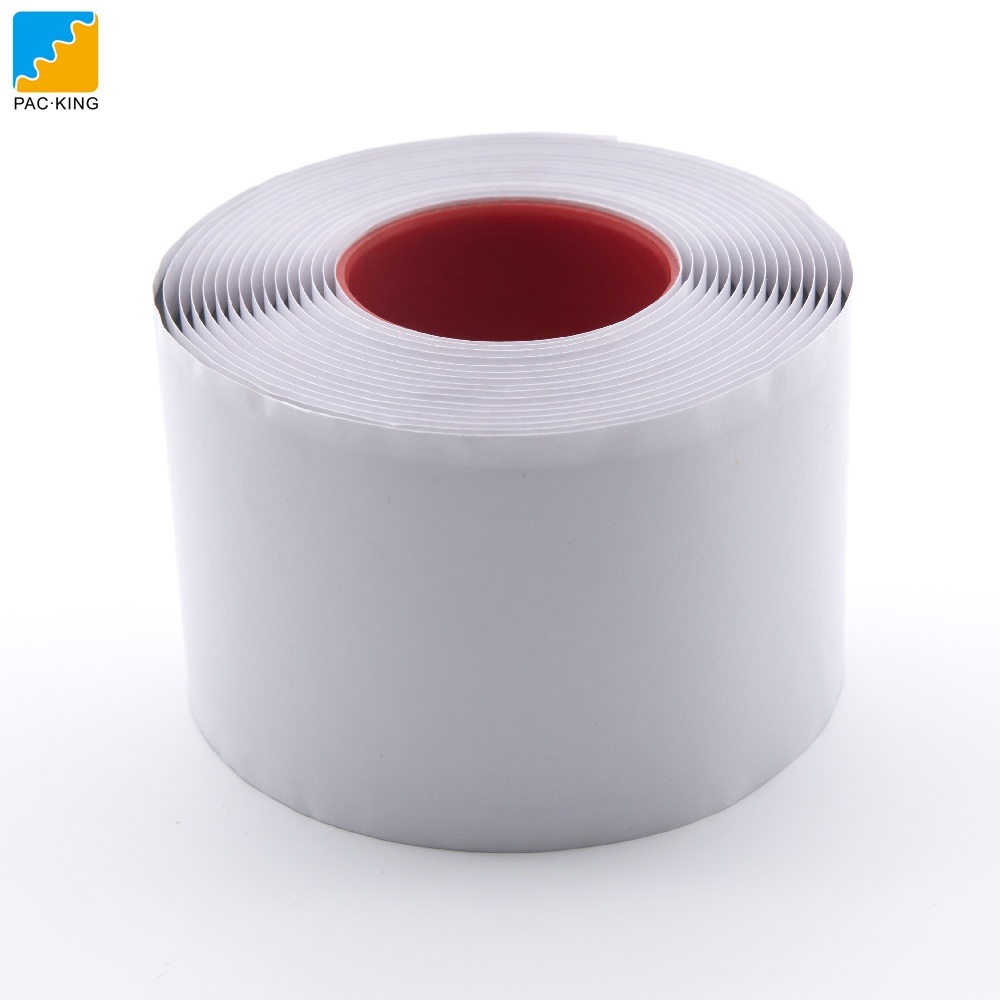

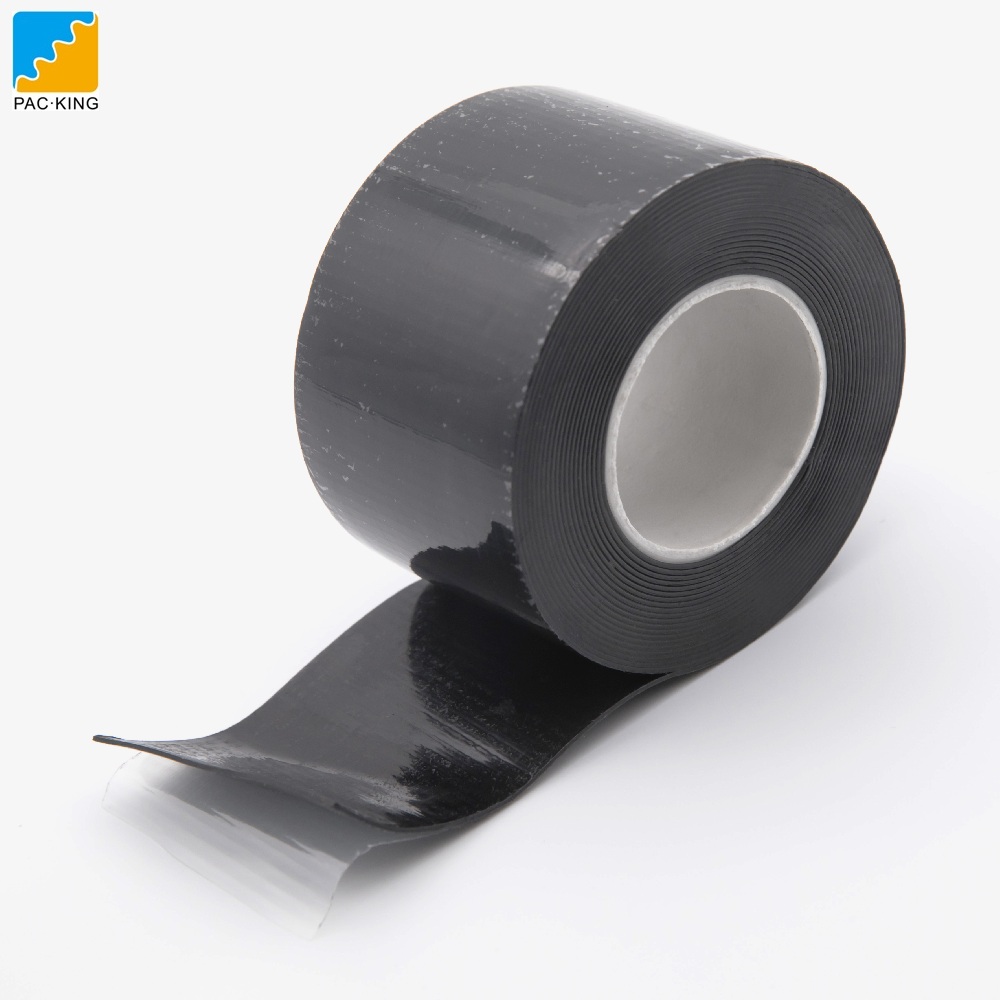

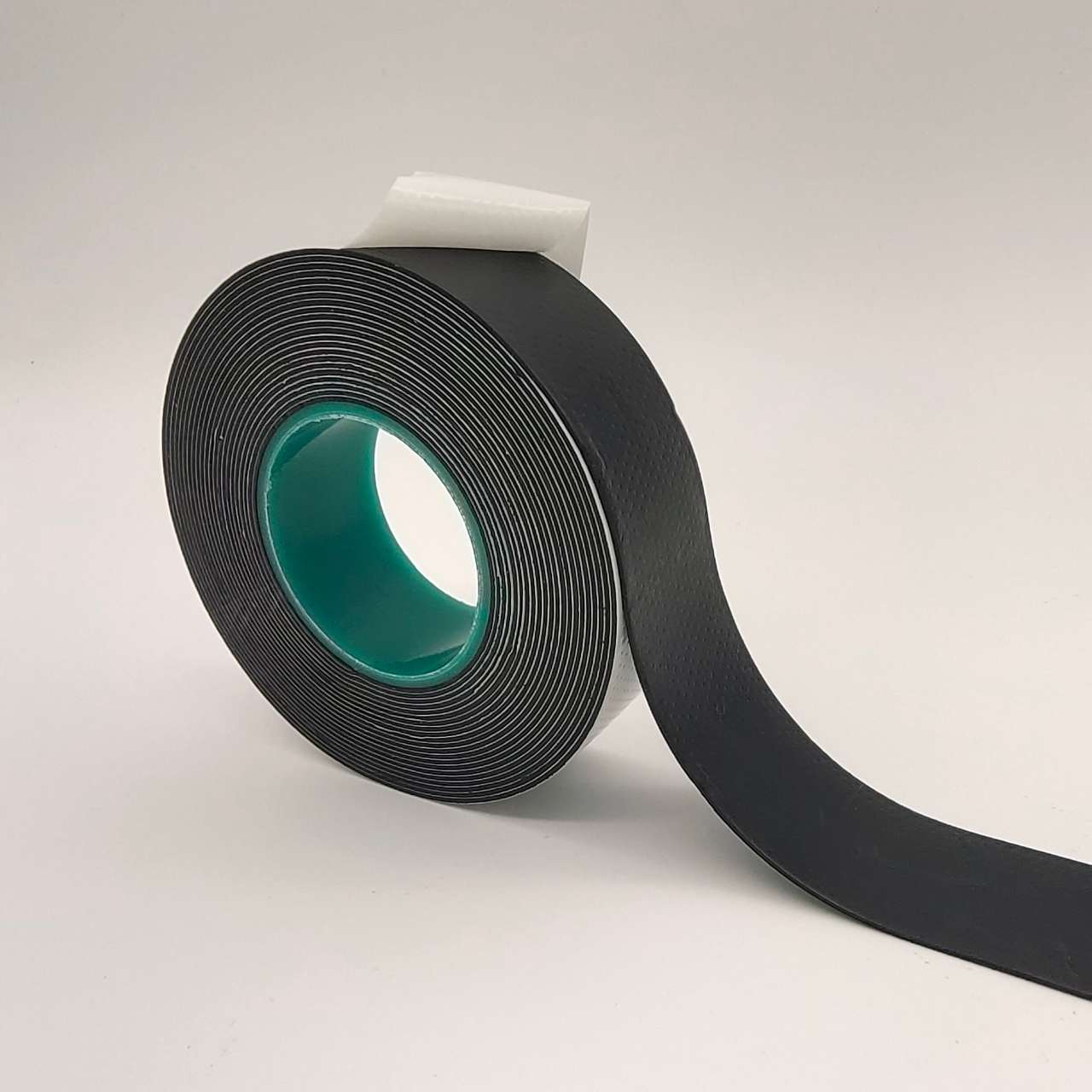

Details of Self Fusing Tape
Backing: Ethylene-propylene rubber (EPR)
Liner: Plastic Film Liner
Color: Black / white
Thickness: 0.6mm/0.76mm/0.8mm/1mm, etc
Details of Self Fusing Tape
Technical Data of Self Fusing Tape
| Part No. | RSFU076 |
| Dielectric strength | 10kv/mm |
| Tensile strength | ≥1.5MPa |
| Total thickness | 0.76mm |
| Elongation | ≥500% |
| Temperature resistance | -20℃~+75℃ |
Applications of Self Fusing Tape
Self fusing tape is mainly used for insulation and protecting joins and terminations of cable, and also can be used for pipeline protection, repair, sealing, etc. When used to unlock the isolation membrane, then the tape tension 300% half to take it around, and wrapped around the base electrical tape on the outer for outer protection.
