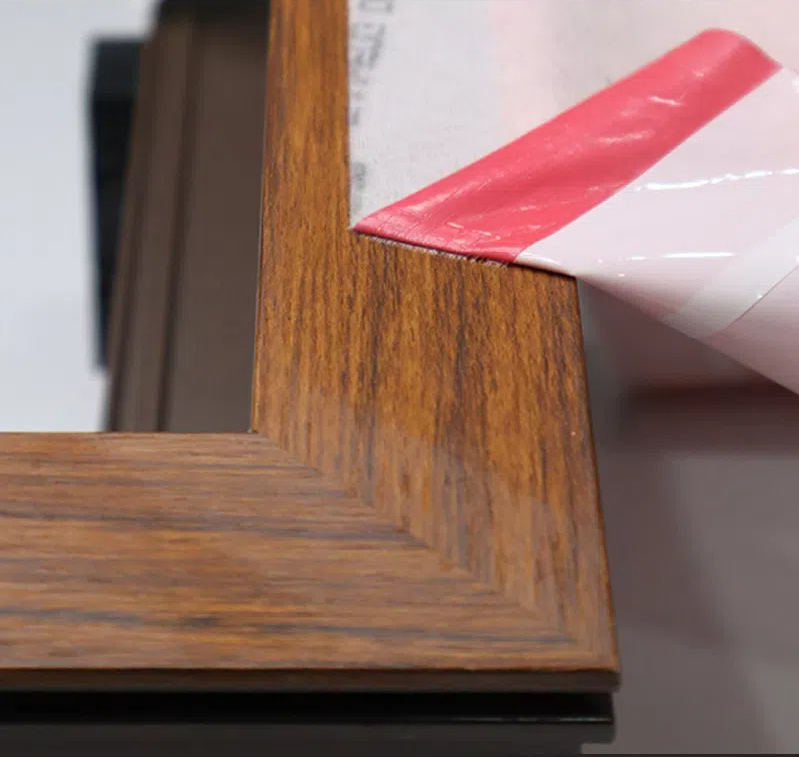

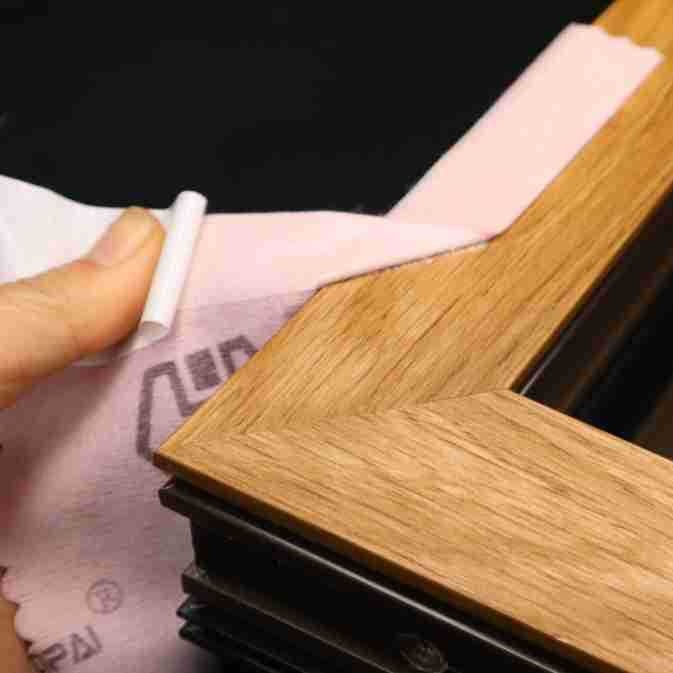

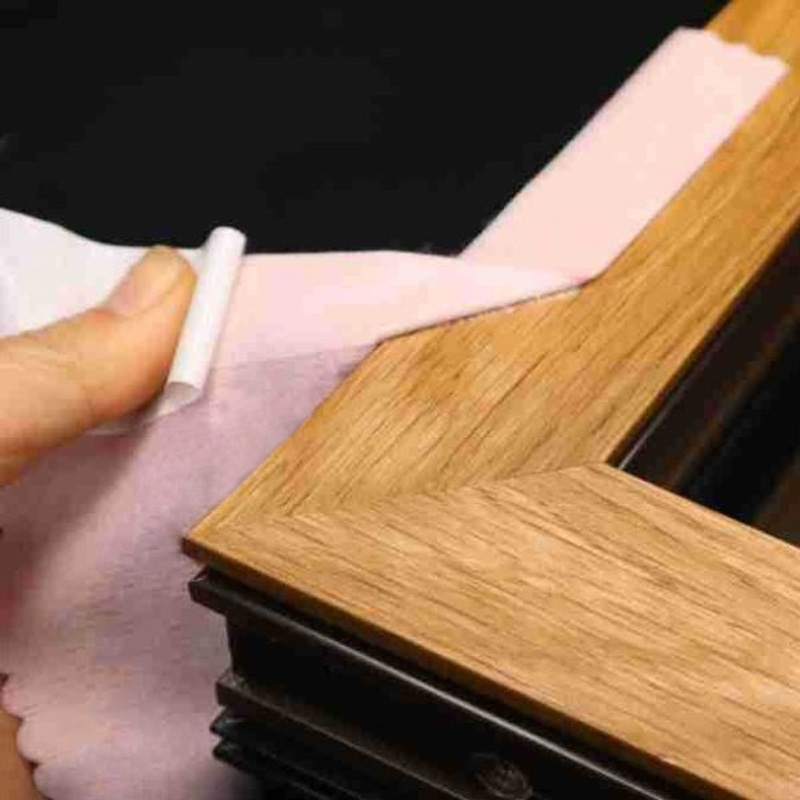

Waterproof Vapour Barrier Tape is a kind of high adhesive tape based on special composite material, which is divided into several series, such as single-sided, double-sided, standard adhesive layer, super thick adhesive layer and so on. It is divided into single-sided, double-sided, standard adhesive layer, ultra-thick adhesive layer and other series. The membrane is flexible and can be plastered, and the adhesive layer is ageing-resistant, highly adhesive and environmentally friendly. The adhesive layer is anti-aging, super adhesive and environmental protection. One side of the membrane is glued to the window or door frame and the other side is bonded to the wall. This unique structural design makes it possible to ensure superior .This unique structure makes it easier to work on the basis of its superior performance.
Share

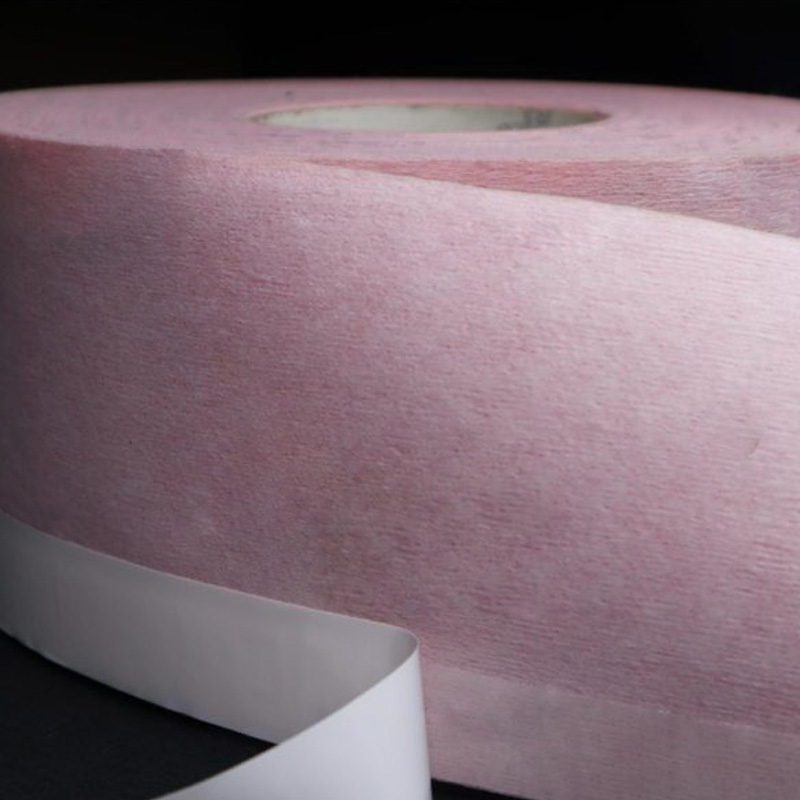

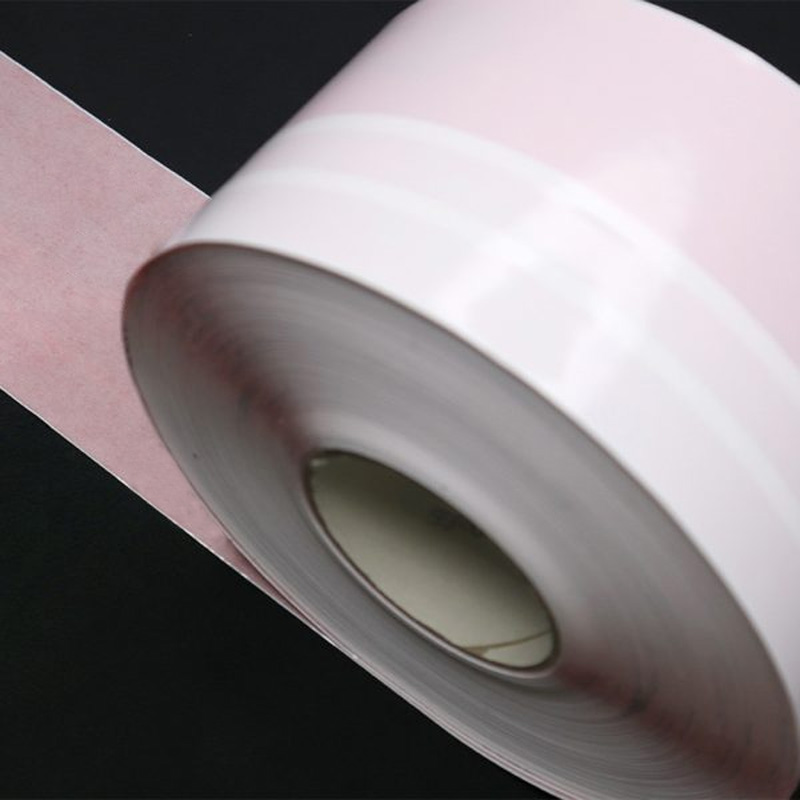

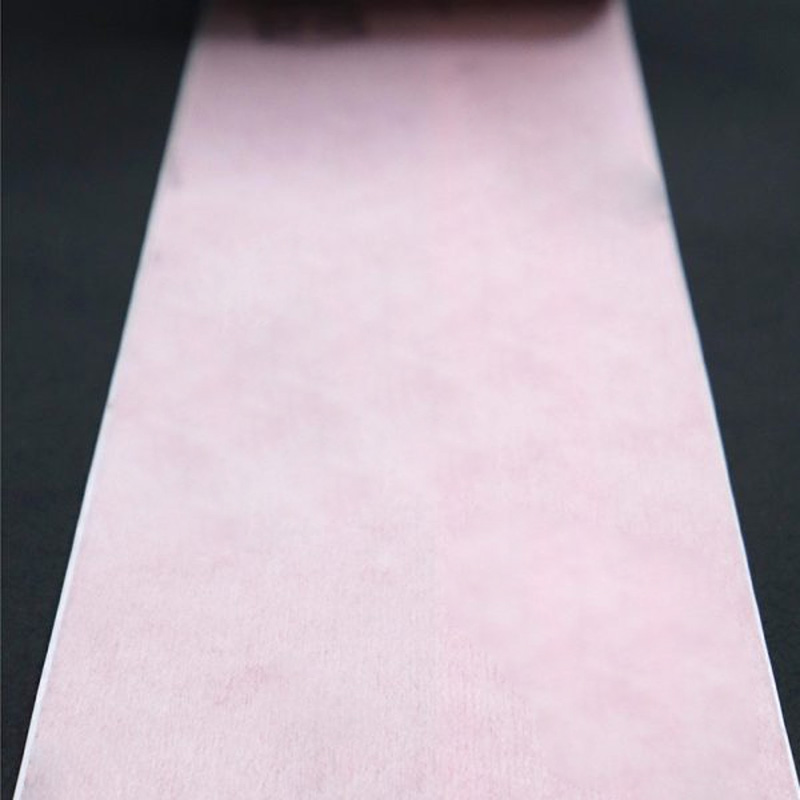

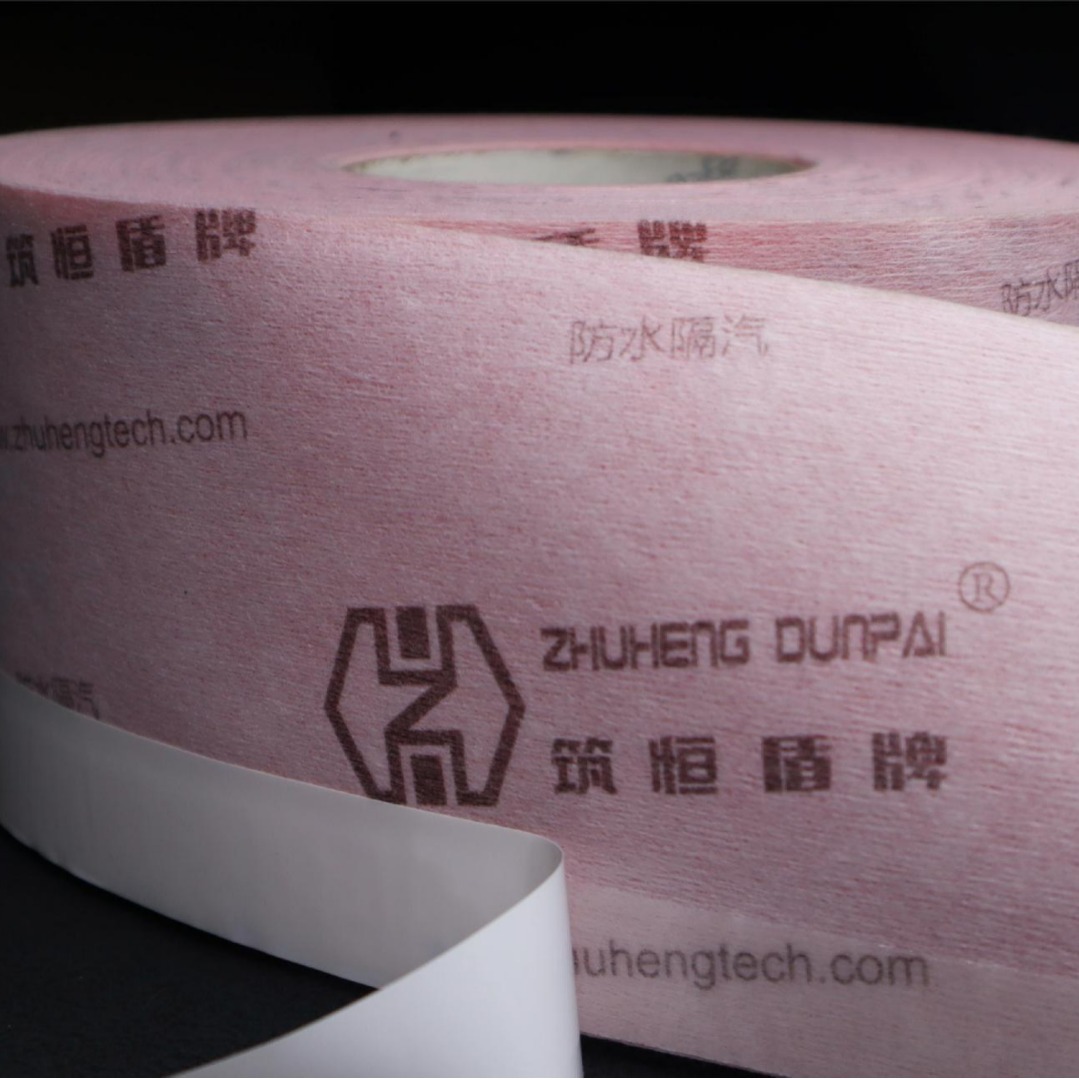

Details of Waterproof Vapor Barrier Membrane Tape
| Name | Waterproof Vapor Barrier Membrane Tape |
| Product Adhesion | High Adhesion |
| MaterialN | Non-woven fabric + vapor permeable polymer film + pressure sensitive adhesive + release film |
| Heat-resistant temperature | -40-60℃ : |
| Support Customization | Customized size |
| Product Color | White/Black/Red |
| Product thickness | 0.6mm |
| Width | 80mm/100m |
| Length | 30m/35m/40m/45m |
| Adhesive system | Hot melt adhesive |
Features of Waterproof Vapor Barrier Membrane Tape
1. Protect against rainstorms and wind, block water vapor and prevent heat loss.
2. The surface self-adhesive is aging-resistant and has good initial adhesion, adhesive holding and low temperature resistance.
3. The surface layer of high-strength fiber nonwoven fabric is not easy to destroy and protect the functional layer.
4. High mechanical strength of the protective layer, preventing the destruction of the functional layer to the maximum extent.
5. Excellent self-peeling strength, not easy to delamination itself.
6. The release film is easy to tear off, moderate stiffness, easy to install.
7. Environmentally friendly, in line with occupational health and safety requirements
Technical Data of Waterproof Vapor Barrier Membrane Tape
|
We can do different thickness,the following is for reference only
|
|||
|
Description
|
Test result
|
||
|
thickness
|
0.65mm
|
||
|
Mass per unit area
|
218 g/㎡
|
||
|
Tensile property
|
Tension
|
Landscape orientation
|
652 N/50mm
|
|
Portrait
|
156 N/50mm
|
||
|
Elongation at break
|
Landscape orientation
|
33%
|
|
|
Portrait
|
188%
|
||
|
Impermeability
|
1000mm，20h
|
impermeable
|
|
|
Water vapor transmission property
|
Water vapor transmittance
|
1.2g/(㎡·24h)
|
|
|
Dampening factor
|
52935
|
||
|
Moisture permeability
|
5.696*10-12kg/(s·㎡pa)
|
||
|
Water vapor equivalent air layer thickness Sd
|
35m
|
||
|
180°Peel strength
|
Aluminium plate
|
1.5 kN/m
|
|
|
Steel plates
|
1.6 kN/m
|
||
|
Air permeability
|
Before washing
|
0.4 mm/s
|
|

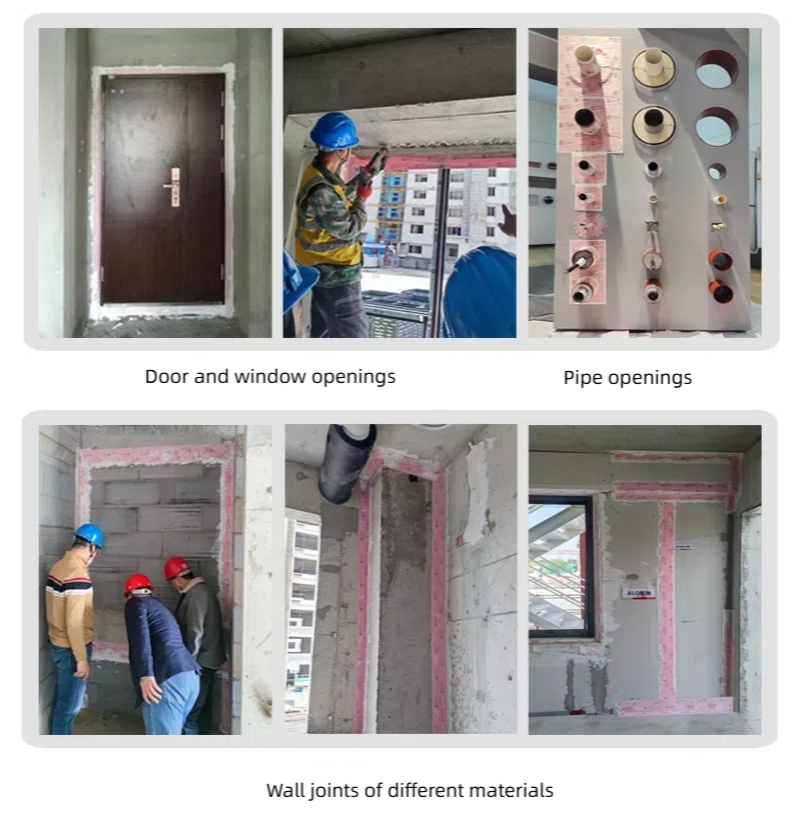

Application of Waterproof Vapor Barrier Membrane Tape

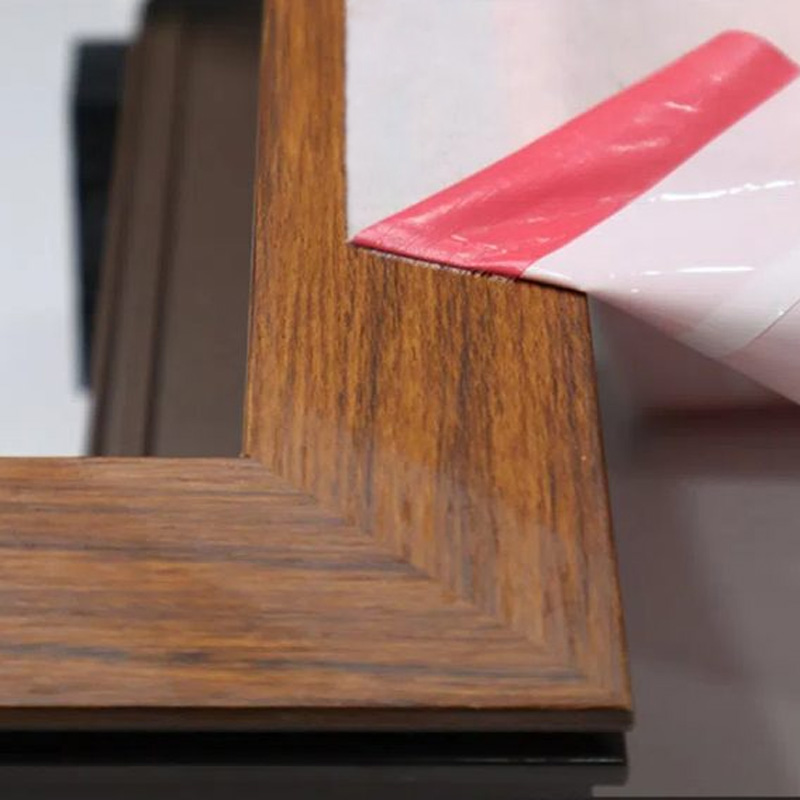

1. Sealing of joints between building door and window frames and walls.
2. Waterproof and vapour barrier treatment for walls, roofs and floors.
3. Sealing and anti-leakage of pipeline holes through the wall.
4. waterproof and vapour permeability protection of steel structure building joints.
